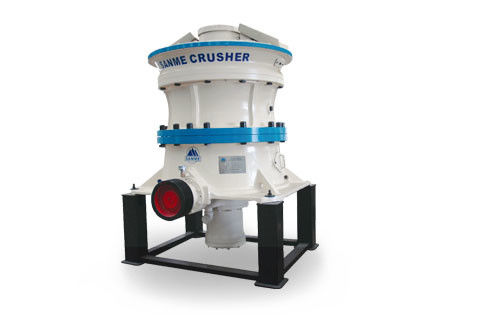

Single Cylinder Cone Crusher Machine 30-1809t/H High Capacity Easy Operation

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: SMG100, SMG200, SMG300, SMG500, SMG700, SMG800

Detail Information

Type: Cone Crusher Application: Mining,construction,Quarry,etc,ore
After-sales Service Provided: Engineers Available To Service Machinery Overseas Capacity(t/h): 30-1809T/h
Power(w): 90-600KW Installation: Under Engineer’s Guide
Spare Parts Supply: Will Supply Any Time Quality: High Leavel
High Light:

cone rock crusher,cone crushing machine

Product Description

Single Cylinder Cone Crusher Machine 30-1809t/H High Capacity Easy Operation

SMG Series Cone Crushers are advanced technology of cone crusher in the world, not only provides the features of high reliability, but also with the features of high crushing efficiency, low operation cost, good shape of the end products.

Features:

Optimized cavity, higher capacity,better quality

SMG series hydraulic cone crusher is designed for optional variety of cavities. By selecting suitable cavities and eccentricity, it ensures the producing demand of customer in maximum and realizes high capacity.

Resistant wear part consumption and low operation cost

The discharging open can be adjusted timely and conveniently with hydraulic adjusting design, which realizes full load operation, lowers wear parts consumption and reduces operating cost.

Easy cavities exchange

Due to the same body structure, we can get different crushing cavity by changing liner plate to fulfill the various processing for coarse and fine crushing.

Advanced hydraulic technology offers easy operation and maintenance

Due to adopting advanced hydraulic technology, overload protection can effectively be realized, which simplify the structure of crusher and reduces its weight. All maintenance and inspection can be fulfilled on the top of crusher, which ensures easy maintenance.

Large feeding opening design

Large feeding opening design is adopted by S type SMG series cone crusher to provide good combination with primary jaw crusher, which greatly improves the crushing capacity. While processing gravels, it can replace jaw crusher and be used as primary crusher.

Working principle of SMG Series Single-cylinder Hydraulic Cone Crushers:

The crushing structure of SMG series single-cylinder hydraulic cone crusher makes the crusher adjustment conveniently, and can adjust the discharge opening freely and simply. The intelligenceauto- control system can keep the crusher at the best work situation, and realizes automatic compensation function between the plate of inner and outer awls.We can set and adjust the discharge opening exactly through the operation panel, also can fulfill the wearing capacity of wear part by several buttons on the control panel. Meanwhile, by adopting the single-cylinder structure, the whole crusher body is compact and greatly reduces the channel for oiling and adjustment structure outside.

Technical Data of SMG Series secondary Cone Crushers

Model Moter power(kw) Stroke (mm) Max lift during maintenance(kg) Total weight(kg) Capacities(t/h)
SMG100S 90 16-25 2850 7500 70-165
SMG200S 160 18-36 4750 12000 105-330
SMG300S 250 18-40 8500 22500 219-586
SMG500S 315 18-40 14200 36300 290-860

Technical Data of SMG Series Tertiary Cone Crushers

Model Moter power(kw) Stroke (mm) Max lift during maintenance(kg) Total weight(kg) Capacities(t/h)
SMG100 90 16-25 1650 5700 30-120
SMG200 160 18-40 2850 9500 63-215
SMG300 250 25-40 5150 17500 95-396
SMG500 315 25-45 8600 28000 175-638
SMG700 520 30-50 15600 53000 350-1391
SMG800 600 30-50 23000 75000 387-1809

SMG series cone crusher.pdf
