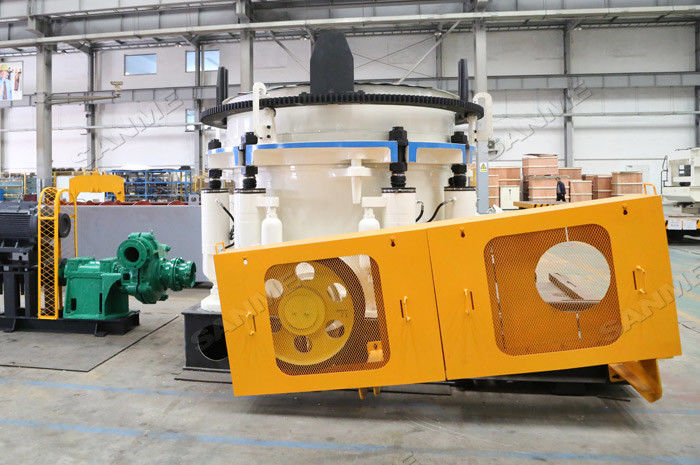

150mm Feed Granite Processing Machine For Phosphatic Industry

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	SMS1000,SMS2000,SMS3000,SMS4000,SMS5000,SMS8000

Detail Information
Applicable Industries:	Energy & Mining	Product Name:	Cone Crusher
Dimension(LWH):	According To Different Models	After-sales Service:	Engineers Available To Service Machinery Overseas
Spare Parts Supply:	Lifelong Time	Warranty:	1 Year
High Light:	150mm Feed Granite Processing Machine,105t/H Granite Processing Machine,limestone Granite Crusher Machine

Product Description

Granite Production Line

SMS series of cone crusher are widely applied in metallurgy, construction, road building, chemical and phosphatic industry. It is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, grit stone, etc… Cavity type of the crushing is decided by the application of the ores. Standard type is applicable to medium crushing, middle type is applicable to fine crushing and short-head type is applicable to super fine crushing.

Working Principle

1. When the Mine barite Symons cone crusher is working, the engine rotates around a fixed point driven by the belt wheel or the coupling.
2. The transmission shaft and the conical part of cone crusher swing under the force from the eccentric bushing, which makes the crushing wall of the cone crusher close to the pierced mortar wall at intervals.
3. Then, the ores will be impacted, squeezed and bent constantly in the crushing chamber.
4. At last, the whole ore crushing process is finished.
5. The perfect combination of high-performance crushing chamber and high crushing frequency improves the handling ability of cone crusher to a greater degree.

Technical Date of SMS Series Fully Hydraulic Cone Crusher:

Model	Max Feed Size (mm)	Discharge Range (mm)	Motor Power (kw)	Capacity (t/h) —— open circuit, closed discharge (mm)												Weight (t)
Model	Max Feed Size (mm)	Discharge Range (mm)	Motor Power (kw)	6	9	13	16	19	22	26	32	38	45	51	63	Weight (t)
SMS1000EC	150	22~32	90						95	105	110					9.4
SMS1000C	107	13~26				65	78	85	95	105						9.4
SMS1000M	76	10~22			53	65	78	85	95							9.4
SMS1000F	45	9~19			53	65	78	85								9.4
SMS1000EF	20	6~16		40	53	65	78									9.4
SMS2000C	185	22~38	160						170	185	200	225				17.5
SMS2000M	135	16~32					118	140	170	185	200					17.5
SMS2000F	95	13~26				95	118	140	170	185						17.5
SMS2000DC	76	10~22	160		78	95	115	125	155							17.5
SMS2000DM	54	9~19			78	95	115	125								17.5
SMS2000DF	25	6~16		60	78	95	115									17.5
SMS3000EC	235	26~51	160-220							245	270	320	375	400		25
SMS3000C	211	22~45							230	245	270	320	375			25
SMS3000M	150	16~38					155	175	230	245	270	320				25
SMS3000F	107	13~32				110	155	175	230	245	270					25
SMS3000DC	78	10~22	160-220		105	130	160	165	210							25
SMS3000DM	53	9~19			105	130	160	165								25
SMS3000DF	25	6~16		90	105	130	160									25
SMS4000EC	299	32~51	200-315								365	420	480	520		33.5
SMS4000C	235	26~51								315	365	420	480	520		33.5
SMS4000M	199	22~45							266	315	365	420	480			33.5
SMS4000F	135	16~38					198	210	266	315	365	420				33.5
SMS4000DC	95	13~26	200-315			180	205	235	265	290						33.5
SMS4000DM	76	10~22			145	180	205	235	265							33.5
SMS4000DF	45	6~19		120	145	180	205	235								33.5
SMS5000EC	335	32~51	315-400								460	560	615	715		49
SMS5000C	275	26~51								390	460	560	615	715		49
SMS5000M	210	22~45							340	390	460	560	615			49
SMS5000F	150	16~38					285	305	340	390	460	560				49
SMS5000DC	102	13~26	315-400			230	280	340	375	410						49
SMS5000DM	76	10~22			175	230	280	340	375							49
SMS5000DF	45	6~19		145	175	230	280	340								49
SMS8000EC	355	32~63	600								720	800	900	1028	1220	65
SMS8000C	305	32~51									720	800	900	1028		65
SMS8000M	260	26~45								620	720	800	900			65
SMS8000F	215	22~38						480	520	620	720	800				65
SMS8000DC	155	13~26	600			380	455	515	535	585						65
SMS8000DM	92	10~22			310	380	455	515	535							65
SMS8000DF	45	6~19		240	310	380	455	515								65
