Energy Mining Granite Integral Portable Rock Crusher

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	PP120SMH,PP2000SMS,PP250SMH,PP120SMH3S,PP2000SMS2S,PP2000SMS4S,PP250SMH3S,PP250SMH4S,PP100SMGS,PP100(S)SMGS,PP200SMGS,PP200(S)SMGS,PP300SMGS,PP300(S)SMGS

Detail Information
Raw Materials:	River Pebbles, Rocks (limestone, Granite, Basalt, Diabases, Andesite, Etc.), Ore Tailings.	Capacity:	25-586t/h
Max Feeding Size:	38-450mm	Application:	Construction Works , Energy & Mining
Warranty:	1 Year	After-sales Service:	Video Technical Support, Online Support, Field Installation
High Light:	Integral Portable Rock Crusher,Energy Mining Granite Rock Crusher,Quarry Portable Rock Crusher

Product Description

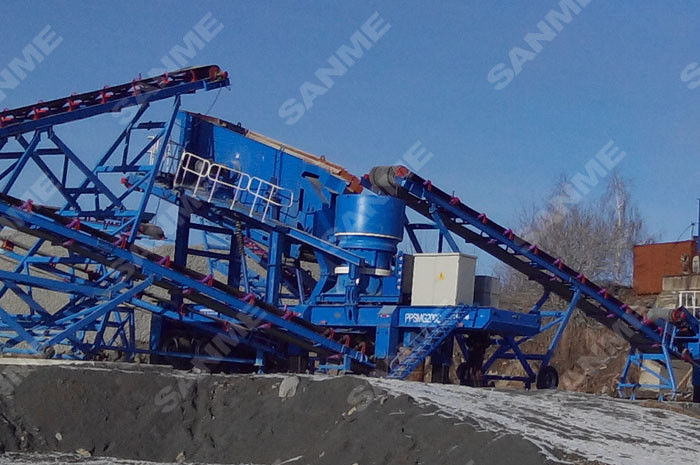

China Portable Cone Crusher

Based on interchangeability and associativity of crushing unit and screening unit, Portable mobile cone crusher /trituradora de piedra movil can realize complex processing technology. Whether first crushing and then screening or first screening and then crushing, this machine provides efficiency and convenient operation mode.

Portable mobile cone crusher /trituradora de piedra movil is widely used in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

Why choose Portable cone crusher

1. High capacity
2. High performance of secondary crushing
3. Flexible
4. Integral crushing&screening
5. Belt conveyor self-loaded

Technical Data of PP Series Portable Cone Crusher

Model	PP120SMH	PP2000SMS	PP250SMH
Transport dimensions
Length(mm)	11200	11200	11500
Width(mm)	2780	2780	2780
Height(mm)	3900	4160	4180
Weight(kg)	26200	28500	36100
Axle weight(kg)	17300	18100	25800
King pin weight(kg)	8900	10400	10300
cone crusher
Model	SMH120	SMS2000	SMH250
Feed opening(mm)	50-160	60-180	80-240
Setting range(c.s.s)(mm)	9-32	9-32	9-51
BELT CONVEYOR
Model	B800*6.7	B800*6.7	B1000*7.2
Number of Axles	2	2	2

Model	PP120SMH3S	PP2000SMS2S	PP2000SMS4S	PP250SMH3S	PP250SMH4S
Transport dimensions
Length(mm)	13920	15000	15000	15690	15690
Width(mm)	2780	2780	2910	3280	3300
Height(mm)	4340	4350	4300	4500	4500
Weight(kg)	33000	37500	41000	53000	54600
Axle weight(kg)	21000	26000	25200	34500	35800
King pin weight(kg)	11000	11500	15700	18500	18800
cone crusher
Model	SMH120	SMS2000	SMS2000	SMH250	SMH250
Feed opening(mm)	50-160	60-180	60-180	80-240	80-240
Setting range(c.s.s)(mm)	9-32	9-32	9-32	9-51	9-51
SCREEN
Model	3YK1548	2YK1860	4YK1860	3YK2160	4YK2160
BELT CONVEYOR
Model	B800*7.4	B1000*8.2	B1000*8.2	B1000*8.2	B1000*8.2
Number of Axles	2	2	3	3	3

Model	PP100SMGS	PP100(S)SMGS	PP200SMGS	PP200(S)SMGS	PP300SMGS	PP300(S)SMGS
Transport dimensions
Length(mm)	13920	13920	14323	14323	13920	13720
Width(mm)	2780	2780	3070	3070	2780	2780
Height(mm)	4300	4430	4585	4585	4450	4645
Weight(kg)	28000	33400	43100	45600	48700	53900
Axle weight(kg)	19800	20600	25100	26400	31500	33500
King pin weight(kg)	8200	9600	18000	19200	17200	20400
cone crusher
Model	SMG100	SMG100S	SMG200	SMG200S	SMG300	SMG300S
Feed opening(mm)	38-150	200-240	70-200	300-360	70-215	400-450
Setting range(c.s.s)(mm)	4-32	22-38	8-32	22-54	10-44	29-54
Capacity(t/h)	25-120	70-135	63-215	105-330	95-368	215-586
SCREEN
Model	3YK1548	3YK1548	3YK1860	3YK1860	3YK2160	3YK2160
BELT CONVEYOR
Model	B800*7.4	B800*7.4	B1000*8.2	B1000*8.2	B1000*8.2	B1000*8.2
Number of Axles	2	2	2	2	3	3
