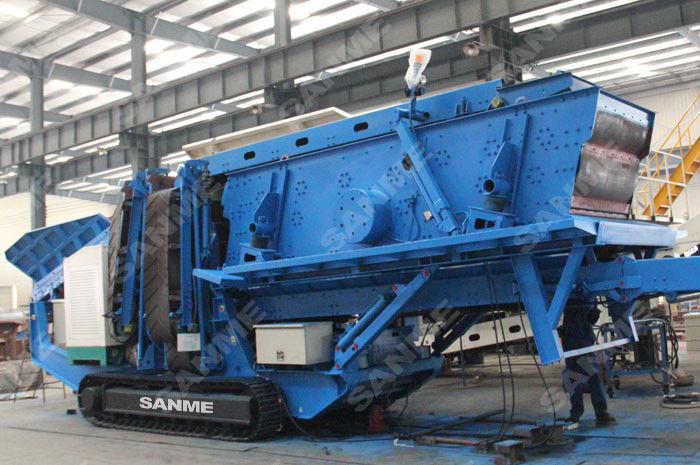

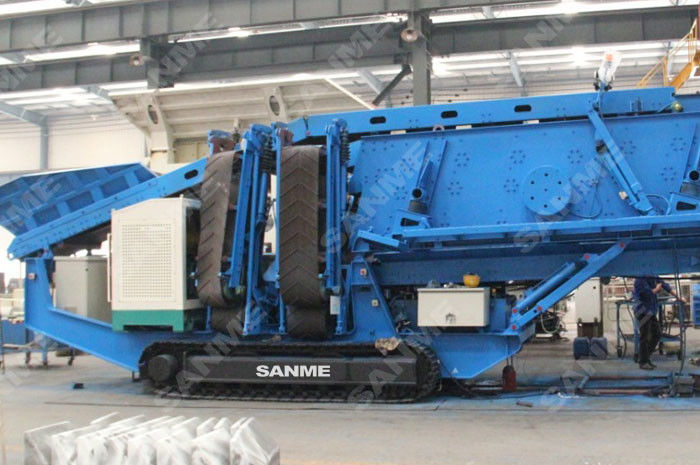

138KW 900t/H Vibrating Stone Mobile Screening Plant

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	MP-S151, MP-S153, MP-S181,

Detail Information
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Type:	Mobile Vibrating Stone Screen
Application:	Screening For Various Quarries And Building Demolition Waste, Mining Operations And So On.	Power:	110-138KW
Capacity:	20-900t/h	Max Feeding Size:	10mm-100mm
High Light:	900t/H Mobile Screening Plant,138KW Mobile Screening Plant,100mm Feeding Mobile Screening Plant

Product Description

MP-S SERIES MOBILE SCREEN PLANTS

Designed and manufactured with more professional mobile screening technology, MP-S Series Mobile Screen Plants can meet the customers’ requirement of high mobility, high crushing efficiency and optimizes your business mode.

MP-S SERIES MOBILE SCREENING PLANTS ARE APPLICABLE FOR

Minerals and Hard Rock Crushing

Aggregates Processing

Construction Waste Recycling

Technical Data of MP-S Series Mobile Screen Plants:

MP-S Series Mobile Screen Plants	MP-S151	MP-S153	MP-S181
Screen box(mm×mm)	1500×4500	1500×6100	1800×4800
Deck	2 or 3	2 or 3	2 or 3
Driving Unit
Engine	Cummins or CAT	Cummins or CAT	Cummins or CAT
Performance(kw)	110	138	110
Feed Hopper
Hopper Volume(m3)	10	10	10
Belt Feeder
Drive	hydraulic	hydraulic	hydraulic
Main Conveyor belt
Belt Width(mm)	1200	1200	1200
Drive	hydraulic	hydraulic	hydraulic
Crawler Unit
Drive	hydraulic	hydraulic	hydraulic
Dimensions and Weight
Working Dimensions
-Length (mm)	16457	19800	16539
-Width (mm)	14282	17800	14327
-Height (mm)	4199	7300	4238
Transport Dimensions
– Length (mm)	14840	19500	15130
– Width (mm)	2861	3300	3245
– Height (mm)	3461	3500	3574
Weight (t)	26	39	29
