Feeding 260mm 150t/H Minerals Aggregates Mobile Cone Crusher

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	MP-C120, MP-C180, MP-C250,

Detail Information
Capacity(t/h):	150-350t/h	Application:	Minerals And Hard Rock Crushing, Aggregates Processing, Slag Processing, Tunnel Crushing
Warranty:	1 YEAR	MAX FEEDING SIZE:	≤260mm
Type:	Mobile Crusher	Spare Parts Supply:	Life Long Time
High Light:	150t/H Mobile Cone Crusher,Aggregates Mobile Cone Crusher,Feeding 260mm Mobile Cone Crusher

Product Description

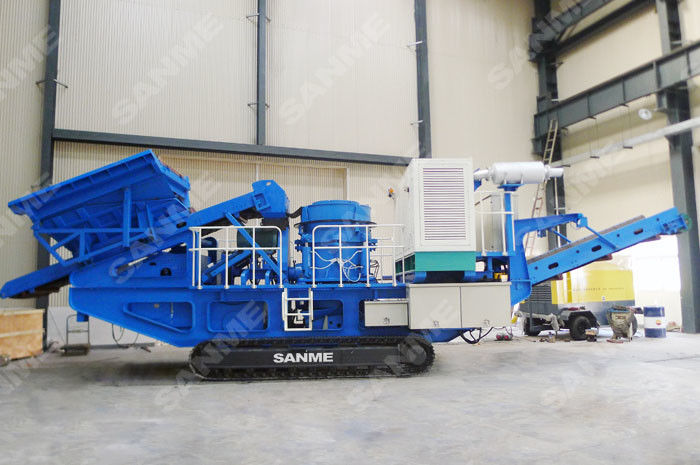

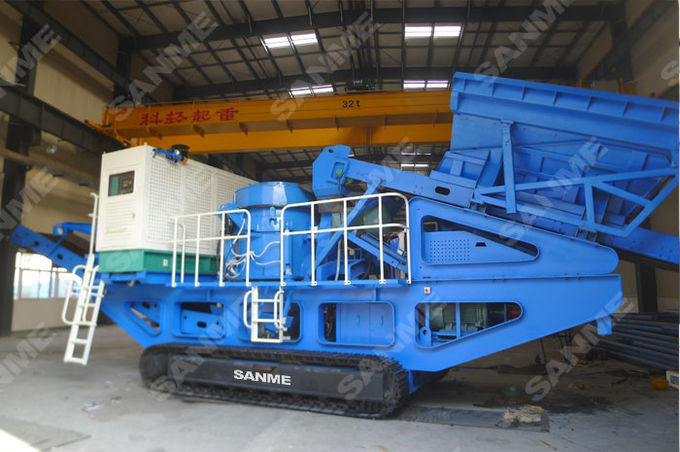

MP-C SERIES MOBILE CONE CRUSHING PLANTS

Designed and manufactured with more professional mobile crushing technology, MP-C Series Mobile Cone Crushing Plants can meet the customers’ requirement of high mobility, high crushing efficiency and optimizes your business mode.

MP-C SERIES MOBILE CONE CRUSHING PLANTS ARE APPLICABLE FOR

Minerals and Hard rock Crushing

Aggregates Processing

Slag Processing

Tunnel Crushing

PRODUCT DATA

Technical Data of MP-C Series Mobile Cone Crushing Plants:

MP-C Series Mobile Cone Crusher Plants	MP-C120	MP-C180	MP-C250
Cone Crusher	SMH120	SMH180	SMH250
Max Feed Size (mm)	160	180	260
Gap Width (mm)	9-32	9-32	9-51
Crushing Capacity (t/h)	up to 150	up to 200	up to 350
Driving Unit
Engine	Cummins or CAT	Cummins or CAT	Cummins or CAT
Performance(kw)	261	261	400
Feed Hopper
Hopper Volume(m3)	4	5	6
Belt Feeder
Drive	hydraulic	hydraulic	hydraulic
Main Conveyor belt
Discharge Height(mm)	2900	3300	3300
Drive	hydraulic	hydraulic	hydraulic
Crawler Unit
Drive	hydraulic	hydraulic	hydraulic
Dimensions and Weight
Working Dimensions
-Length (mm)	13767	13850	14530
-Width (mm)	3621	3650	4150
-Height (mm)	4497	4550	4720
Transport Dimensions
– Length (mm)	14273	14320	14900
– Width (mm)	3543	3570	3640
– Height (mm)	4024	4050	4130
Weight (t)	37	39.5	49

Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
