30t/H 35mm Feeding 40mm Aggregate Mining Crushing Machine

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	SMH120 , SMH250 , SMH350 , SMH550

Detail Information
Max Feeding Size:	35mm-450mm	Applicable Industries:	Mining, Metallurgy, Construction, Highway, Railroad, And Water Conservancy, Etc
Online Service Time:	24 Hours Online For Your Consultation	Certification:	CE, ISO
Capacity:	30-1566t/h	After-sales Service Provided:	Rovided: Field Installation, Commissioning And Training, Field Maintena
High Light:	40mm Aggregate Mining Crushing Machine,30t/H Mining Crushing Machine,35mm Feeding Mining Crushing Machine

Product Description

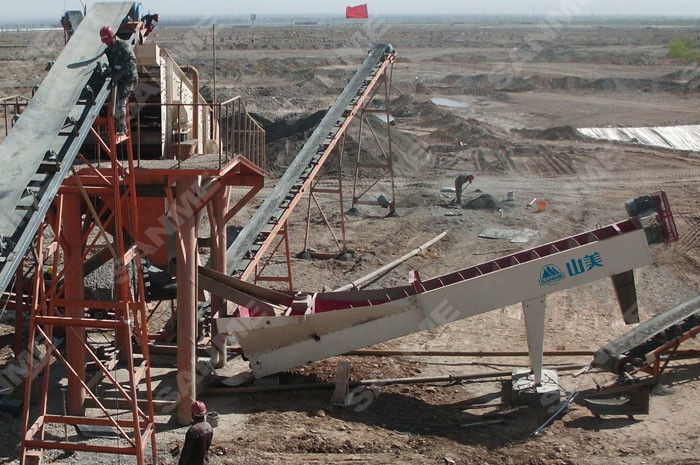

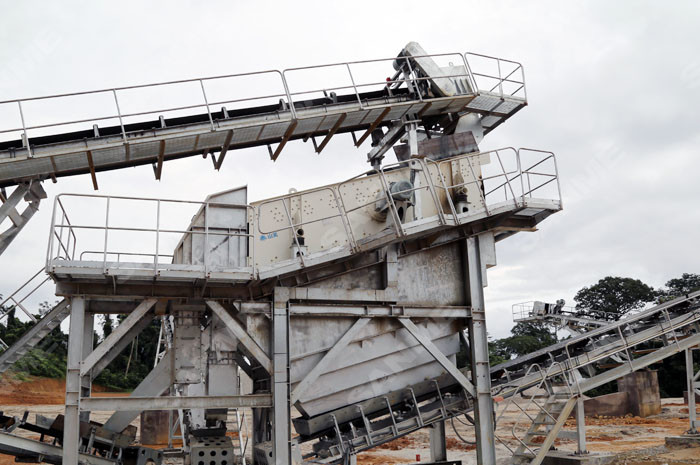

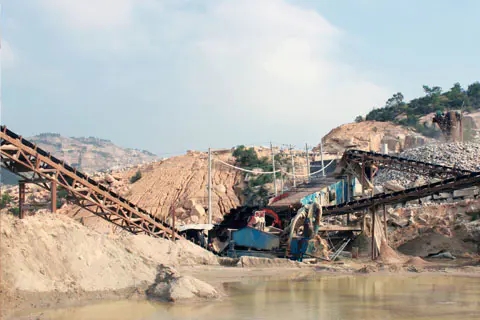

BASIC PROCESS INTRODUCTION OF WET SAND MAKING PLANT

In the process of SANME wet sand making, new sand making machine has replaced the rod mill with high running cost, which greatly improve the reliability of artificial sand production, and ensure the quality of product.

The process is specifically designed for the material less than 40mm ( material will be primarily and secondarily crushed by jaw crusher, cone crusher, impact crusher, etc to the size less than 40mm ), vertical shaft impact crusher ( sand making machine ) is used in the configuration of production line, this crusher is the new type sand maker of SANME, which has the features of high crushing efficiency ( with the function of fine crushing and coarse grinding ), simple structure, easy installation and maintenance, low operation cost and excellent particle size ( cubic shape, low content of needle-like particles ).

Aggregate with size of 0-40mm will be conveyed by electromagnetic feeder and belt conveyor to vertical shaft impact crusher for crushing, the crushed material will be conveyed to vibrating screen for screening, the material with size larger than 5mm will be conveyed back to sand maker for crushing to achieve a closed circuit.

The material with size less than 5mm will be conveyed to sand washer for cleaning, the cleaned material will be conveyed by belt conveyor to final product pile. In order to ensure the fineness module and sand grading, the sand washing water will be recycled by fine sand collection system to collect the fine sand with size less than 0.16mm.

FEATURES OF SANME WET SAND MAKING PROCESS

1. The design of process is scientific and reasonable, which effectively ensure the quality and output of manufactured sand.

2. It is capable of crushing middle and high as well as extra high hardness material.

3. High automation minimize the cost of human resource.

4. Good sand grading, adjustable fineness module.

5. Low running noise level, less dust pollution.

Technical description:

1. This process is designed according to the parameters provided by the customer. This flow chart is for reference only.

2. The actual construction should be adjusted according to the terrain.

3. The mud content of the material cannot exceed 10%, and the mud content will have an important impact on the output, equipment and process.

4. SANME can provide technological process plans and technical support according to the actual requirements of customers, and can also design non-standard supporting components according to the actual installation conditions of customers.

30t/H 35mm Feeding 40mm Aggregate Mining Crushing Machine 0
