Feeding 100mm High Efficiency Basalt Mining Crushing Machine

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: SMS1000,SMS2000,SMS3000,SMS4000,SMS5000,SMS8000

Detail Information

Max Feeding Size: 35-100mm Applicable Industries: Mining, Metallurgy, Construction, Highway, Railroad, And Water Conservancy, And Etc.
Certification: CE, ISO Capacity: 86-800t/h
Material: River Pebbles Equipments: Cone Crusher, Sand Making Machine, Sand Washer, Vibrating Feeder, Vibrating Screen, Belt Conveyor
High Light:

Feeding 100mm Mining Crushing Machine,Basalt Screening Mining Crushing Machine,220 tph Mining Crushing Machine

Product Description

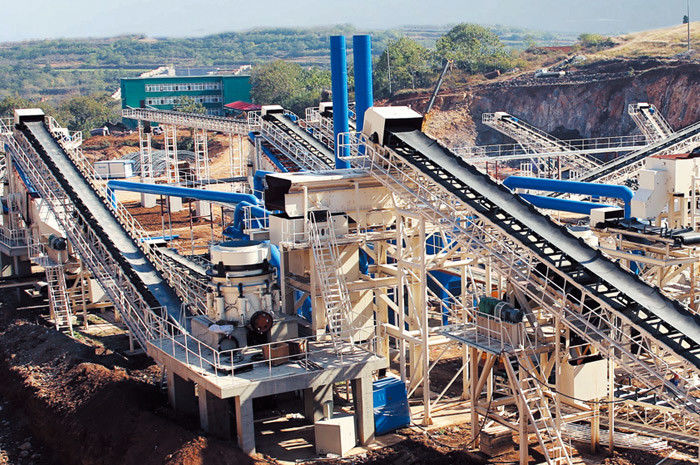

high-efficiency basalt production line equipment

Intruduction of stone crusher plant

1. Mainly applied to crushing of limestone, granite, basalt, river stone, andesite, quartz, silica.

2. The jaw crusher machine is widely used in coarse crushing. Cone crusher, impact crusher, or fine jaw crusher is adopted for secondary crushing.

3. The terriary VSI sand making machine is used for production of mechanical sand.

150-220 tph stone crusher line configuration

Number Equipment Quantity
01 Vibrating Feeder 1
02 Jaw Crusher 1
03 Cone Crusher 1/2
04 Vibrating Screen 2/3

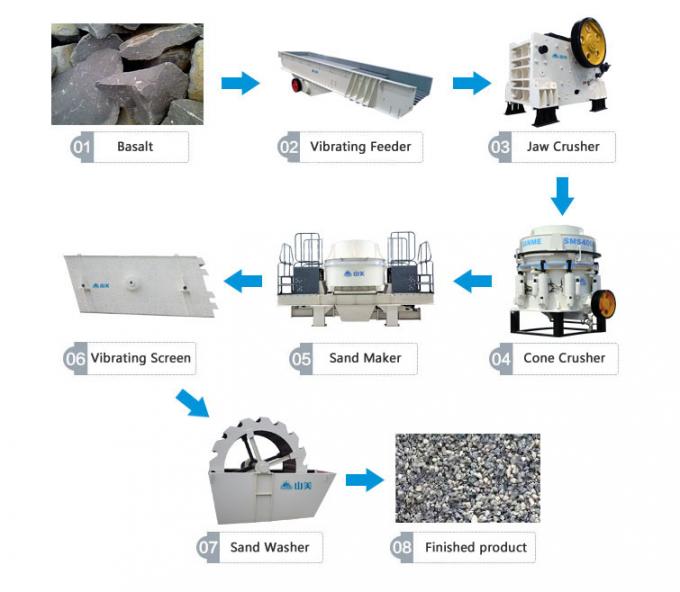

BASIC PROCESS OF BASALT SAND MAKING PLANT

The basalt sand making process is divided into four stages: coarse crushing, medium fine crushing, sand making and screening.

The first stage: coarse crushing

The Basalt stone blasted from the mountain is fed uniformly by the vibrating feeder through the silo and transported to the jaw crusher for coarse crushing.

The second stage: medium broken

The coarsely crushed materials are screened by vibrating screen and then conveyed by belt conveyor to cone crusher for medium crushing. The crushed stones are conveyed to the vibrating screen through a belt conveyor to sieve out different specifications of stones. The stones that meet the requirements of the customer’s particle size are conveyed to the finished product pile through the belt conveyor. The cone crusher crushes again, forming a closed circuit cycle.

The third stage: sand making

The crushed material is larger than the size of the two-layer screen, and the stone is conveyed to the sand maker machine through the belt conveyor for fine crushing and shaping.

The fourth stage: screening

The finely crushed and reshaped materials are screened by circular vibrating screen for coarse sand, medium sand and fine sand.

Feeding 100mm High Efficiency Basalt Mining Crushing Machine 0Feeding 100mm High Efficiency Basalt Mining Crushing Machine 1Feeding 100mm High Efficiency Basalt Mining Crushing Machine 2
