Screening 500t/H Feeding 450mm Stone Crushing Equipment

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: SMH120,SMH180,SMH250,SMH350,SMH550

Detail Information

Max Feeding Size: 450mm Capacity(t/h): 100-500t/h
Applicable Industries: Construction Works , Energy & Mining, Stone Crushing Plant Product Name: Sand Making Production Line
Certification: ISO, CE Application: Energy & Mining
High Light:

500t/H Stone Crushing Equipment,Screening Stone Crushing Equipment,Feeding 450mm Mining Rock Crusher

Product Description

Wet Sand Making Price

VSI series sand making machine adpots high-speed movement of materials mutual self-broken and friction between materials to crush.This series of equipment is not only crushing stone, making sand and also playing shaping role with the finished products.

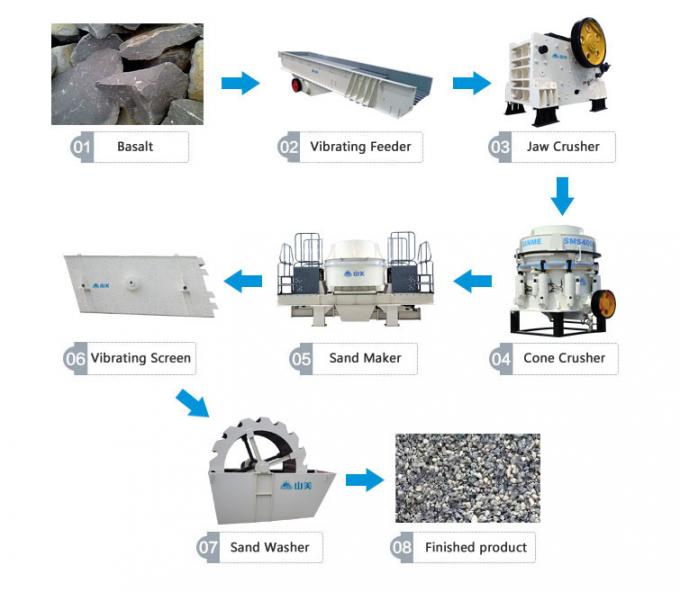

BASIC PROCESS OF BASALT SAND MAKING PLANT



The basalt sand making process is divided into four stages: coarse crushing, medium fine crushing, sand making and screening.



The first stage: coarse crushing



The Basalt stone blasted from the mountain is fed uniformly by the vibrating feeder through the silo and transported to the jaw crusher for coarse crushing.



The second stage: medium broken



The coarsely crushed materials are screened by vibrating screen and then conveyed by belt conveyor to cone crusher for medium crushing. The crushed stones are conveyed to the vibrating screen through a belt conveyor to sieve out different specifications of stones. The stones that meet the requirements of the customer’s particle size are conveyed to the finished product pile through the belt conveyor. The cone crusher crushes again, forming a closed circuit cycle.



The third stage: sand making



The crushed material is larger than the size of the two-layer screen, and the stone is conveyed to the sand maker machine through the belt conveyor for fine crushing and shaping.



The fourth stage: screening



The finely crushed and reshaped materials are screened by circular vibrating screen for coarse sand, medium sand and fine sand.

Technical Data of VC7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Throughput (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VC726L 1881-2499 35 60-102 90-176 110 3600*1969*2200 ≤7055
VC726M 70-126 108-211 132
VC726H 96-150 124-255 160
VC730L 1630-2166 40 109-153 145-260 180 4600*2150*2480 ≤10000
VC730M 135-200 175-340 220
VC730H 160-243 211-410 264
VC733L 1455-1934 55 165-248 215-415 264 5500*2563*3178 ≤14020
VC733M 192-286 285-532 320
VC733H 238-350 325-585 400
VC743L 1132-1504 60 230-346 309-577 400 5850*2740*3031 ≤21040
VC743M 246-373 335-630 440
VC743H 281-405 366-683 500
VC766L 1132-1504 60 362-545 486-909 2*315 5850*2740*3050 ≤21840
VC766M 397-602 540-1016 2*355
VC788L 517-597 65 460-692 618-1154 2*400 6000*3040*3456 ≤23220
VC788M 560-848 761-1432 2*500
VC799L 517-597 65 644-967 865-1615 2*560 6000*3122*3625 ≤24980
VC799M 704-1068 960-1804 2*630

Technical Data of VCU7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Throughput (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VCU726L 1881-2499 55 86-143 108-211 110 3600*1969*2200 ≤6950
VCU726M 98-176 124-253 132
VCU726H 132-210 143-300 160
VCU730L 1630-2166 65 150-212 162-310 180 4600*2150*2482 ≤9910
VCU730M 186-280 203-408 220
VCU730H 220-340 245-480 264
VCU733L 1455-1934 80 230-338 255-497 264 5500*2563*3178 ≤13820
VCU733M 268-398 296-562 320
VCU733H 327-485 373-696 400
VCU743L 1132-1504 100 305-467 362-678 400 5850*2740*3031 ≤21240
VCU743M 335-506 379-746 440
VCU743H 375-540 439-800 500
