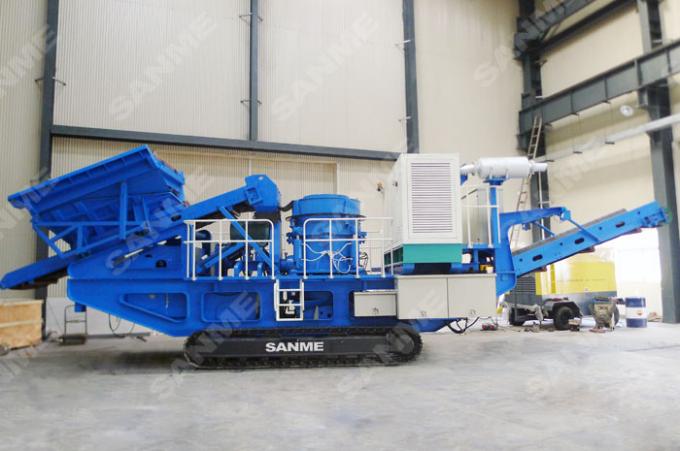

Hydraulic 261kw 150t/H Tunnel Slag Aggregate Cone Crusher

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: SMH120,SMH180,SMH250,SMH350,SMH550

Detail Information

Application: Building Material Shops, Construction Works , Energy & Mining Product Name: Sand Making Production Line
The Machines Class: Mining Machinery After-sales Service Provided: Video Technical Support, Free Spare Parts, Online Support
Spare Parts Supply: Lifelong Time Name: Crushing Station
Machines Classification: Stone Production Line Keyword: Mobile Crusher Station Plant
High Light:

Tunnel Slag Aggregate Cone Crusher,150t/H Aggregate Cone Crusher,Hydraulic 261kw Aggregate Cone Crusher

Product Description

MP-C SERIES MOBILE CONE CRUSHING PLANTS ARE APPLICABLE FOR

Minerals and Hard rock Crushing
Aggregates Processing
Slag Processing
Tunnel Crushing

FEATURES OF MP-C SERIES MOBILE CONE CRUSHING PLANTS

The Mobile crushing & screening plant, made by SANME, is a new kind of high efficient crushing equipment, which is of advanced technology, fully featured and can be driven by itself. The deft design of crawler enables it to reach any possible spot of the work site even under horrible terrain condition. The flexibility helps to eliminate unnecessary processes and makes it more convenient in the coordination of accessory machineries and crushing plant. As excellent and integrated design as it is, this plant can be easily transmitted to work site on a trailer and starts working once gets to the spot.The portable crawler jaw plant, meeting the technical qualification, has the features of high productivity, crushing ratio and uniformed product size.

Technical Data of MP-C Series Mobile Cone Crushing Plants:

MP-C Series Mobile Cone Crusher Plants MP-C120 MP-C180 MP-C250
Cone Crusher SMH120 SMH180 SMH250
Max Feed Size (mm) 160 180 260
Gap Width (mm) 9-32 9-32 9-51
Crushing Capacity (t/h) up to 150 up to 200 up to 350
Driving Unit
Engine Cummins or CAT Cummins or CAT Cummins or CAT
Performance(kw) 261 261 400
Feed Hopper
Hopper Volume(m3) 4 5 6
Belt Feeder
Drive hydraulic hydraulic hydraulic
Main Conveyor belt
Discharge Height(mm) 2900 3300 3300
Drive hydraulic hydraulic hydraulic
Crawler Unit
Drive hydraulic hydraulic hydraulic
Dimensions and Weight
Working Dimensions
-Length (mm) 13767 13850 14530
-Width (mm) 3621 3650 4150
-Height (mm) 4497 4550 4720
Transport Dimensions
– Length (mm) 14273 14320 14900
– Width (mm) 3543 3570 3640
– Height (mm) 4024 4050 4130
Weight (t) 37 39.5 49

Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
Hydraulic 261kw 150t/H Tunnel Slag Aggregate Cone Crusher 0
MP-C mobile crushing plants.pdf
