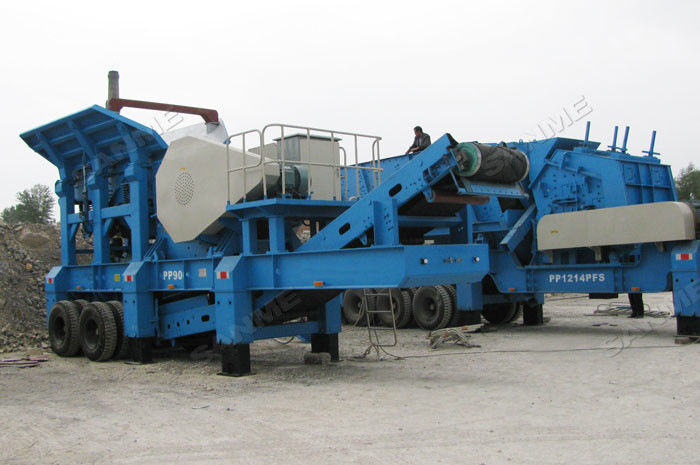

Width 3110mm Metallurgy 450t/H Mobile Impact Crusher

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: PP128HC,PP139HC,PP239HC,PP255HC,PP359HC,PP459HC,PP139HCS,PP239HCS,PP255HCS,PP359HCS

Detail Information

Crushing Materials: River Pebbles, Rocks (limestone, Granite, Basalt, Diabase, Andesite, Etc.) Capacity(t/h): 40-450
Max Feed Size: 400-1520mm Application: Stone Mining, Metallurgy Industry, Building Material, Highway, Railway, And Chemical,etc.
Warranty: 1 YEAR Spare Parts Supply: Lifelong Time
High Light:

450t/H Mobile Impact Crusher,3110mm Mobile Impact Crusher,180t/H Mobile Crushing Equipment

Product Description

Portable Crushing Plants , Lead new Safety Standard,20 years of experience ,Focus on Service

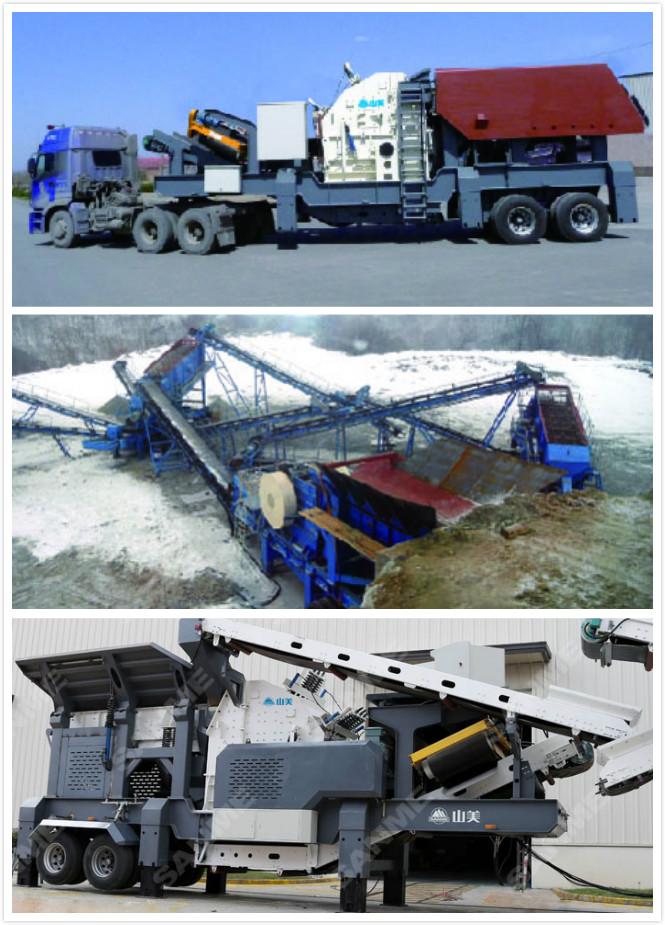

PP SERIES PORTABLE IMPACT CRUSHER

The PP Series Portable Impact Crusher which SANME manufactured is made by the latest manufacturing technology,and is made of high-chrome plate hammer and wearable impact plates, is high crushing ratio.

Structural composition of PP Series Portable Impact Crushers:

All parts of the impact mobile crushing plant are mounted on the truck, including: solid rack, impact crusher, feeder, vibrating screen, conveyor belts, motors and control boxes and other.

Working principle of PP Series Portable Impact Crushers:

Materials by the feeder evenly delivered to the crusher, impact crusher is initial crushing, constitute a closed system circular with vibrating screen, materials achieve to cycle broken, finished materials go to output by the conveyor, and go through continuous crushing operations. According to actual needs of production, we can remove the circular vibrating screen from impact mobile crushing plant, achieve directly to preliminary broken, easy to operate with other crushing equipment, flexible to use.

Features of PP Series Portable Impact Crushers:

1. High-performance PF Series crusher;

2. Feeder with car, Vibrating Screen, Belt Conveyor;

3. Pulling the steering shaft to facilitate road transport;

4. In-car installation support, equipment site installation fast and convenient;

5. Supporting the installation of the motor and control box integration;

6. Mobility; structure is compact, easy to use;

7. Stable performance, easy maintenance; flexible configuration;

8. Saving cost, and reducing costs;

PP Series Portable Impact Crushing Plants (Primary):

Model PP128HC PP139HC PP239HC PP255HC PP359HC PP459HC
Transport dimensions
Length(mm) 10850 10800 11030 11490 13670 13670
Width(mm) 2780 2780 2780 2880 3110 3110
Height(mm) 4400 4400 4370 4460 4780 4890
Weight(kg) 27000 30000 37700 48400 60100 63500
Axle weight(kg) 18500 19000 25600 30920 3800 39500
King pin weight(kg) 8500 11000 12100 17520 21300 24000
Impact Crusher
Model HC128 HC139 HC239 HC255 HC359 HC459
Feed opening(mm) 300 400 500 500 600 750
Capacity(t/h) 40-70 50-80 70-120 130-180 160-250 220-450
Feeder
Model GZT0724 GZT0724 GZT0932 ZSW380*95 ZSW490*110 ZSW490*110
Feed hopper volume(m3) 3.2 3.2 7.6 9 10 10
Belt Conveyor
Model B500*7.5 B800*7 B800*7.5 B1000*8 B1000*8 B1200*8.3
Permanent Magnetic Separator
Magnetic separator optional optional optional optional optional optional

PP Series Portable Impact Crushers (Secondary): :

Model PP139HCS PP239HCS PP255HCS PP359HCS
Transport dimensions
Length(mm) 10800 13800 14700 14500
Width(mm) 2480 2743 2900 3000
Height(mm) 4170 4200 4420 4200
Weight(kg) 28800 35000 40300 47000
Axle weight(kg) 15900 24500 26000 32400
King pin weight(kg) 11300 10500 14300 14600
Impact Crusher
Model HC139 HC239 HC255 HC359
Feed opening(mm) 1100×640 1100×740 1450×760 1550*1080
Capacity(t/h) 50-80 70-120 130-180 160-250
Belt Conveyor
Model B650*6.2 B800*7.4 B800*8.2 B1000*8.2
Screen
Model 3YK1235 3YK1548 3YK1860 3YK2160

Product Data

PP Series Portable Impact Crushing Plants (Primary):

Model PP128HC PP139HC PP239HC PP255HC PP359HC PP459HC
Transport dimensions
Length(mm) 10850 10800 11030 11490 13670 13670
Width(mm) 2780 2780 2780 2880 3110 3110
Height(mm) 4400 4400 4370 4460 4780 4890
Weight(kg) 27000 30000 37700 48400 60100 63500
Axle weight(kg) 18500 19000 25600 30920 3800 39500
King pin weight(kg) 8500 11000 12100 17520 21300 24000
Impact Crusher
Model HC128 HC139 HC239 HC255 HC359 HC459
Feed opening(mm) 300 400 500 500 600 750
Capacity(t/h) 40-70 50-80 70-120 130-180 160-250 220-450
Feeder
Model GZT0724 GZT0724 GZT0932 ZSW380*95 ZSW490*110 ZSW490*110
Feed hopper volume(m3) 3.2 3.2 7.6 9 10 10
Belt Conveyor
Model B500*7.5 B800*7 B800*7.5 B1000*8 B1000*8 B1200*8.3
Permanent Magnetic Separator
Magnetic separator optional optional optional optional optional optional

PP Series Portable Impact Crushers (Secondary):

Model PP139HCS PP239HCS PP255HCS PP359HCS
Transport dimensions
Length(mm) 10800 13800 14700 14500
Width(mm) 2480 2743 2900 3000
Height(mm) 4170 4200 4420 4200
Weight(kg) 28800 35000 40300 47000
Axle weight(kg) 15900 24500 26000 32400
King pin weight(kg) 11300 10500 14300 14600
Impact Crusher
Model HC139 HC239 HC255 HC359
Feed opening(mm) 1100×640 1100×740 1450×760 1550*1080
Capacity(t/h) 50-80 70-120 130-180 160-250
Belt Conveyor
Model B650*6.2 B800*7.4 B800*8.2 B1000*8.2
Screen
Model 3YK1235 3YK1548 3YK1860 3YK2160
