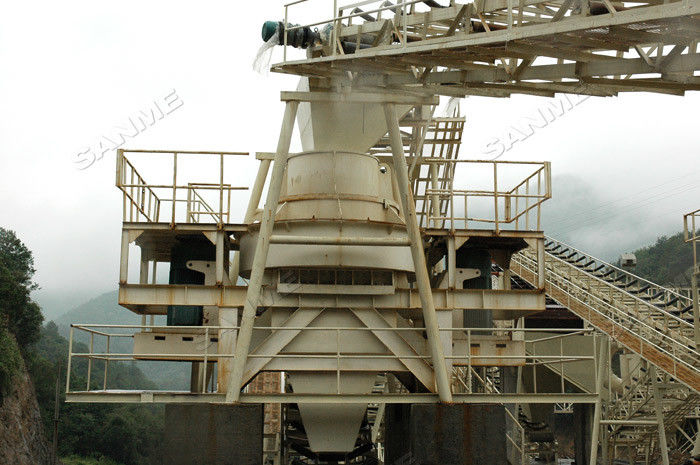

ISO CE 500t/H Feeding 100mm Vsi Sand Making Crusher

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: VC726, VC730, VC733, VC743, VC766, VC788, VC799

Detail Information

Capacity(t/h): 60-1804 Max Feedding Size: 100mm
Max Feeding Size: 100mm Product Name: Good Quality Hard Stone Vsi Sand Maker Crusher Equipment
After Sale Service: Life Long Operation Time Motor Type: AC Motor
The Machines Classification: Building Stone Production Line Spare Parts Supply: Lifelong Time
High Light:

100mm Sand Making Crusher,Vsi Sand Making Crusher,500t/H Vertical Impact Crusher

Product Description

VC7 SERIES VERTICAL SHAFT IMPACT CRUSHER

VC7 Series Vertical shaft Impact Crusher, which are high-functioned equipment for making sand and shaping, are developed and produced by SANME. Thin oil lubrication excels traditional lubrication in many aspects: larger rotation rate, patent sealing structure, and high sand production ratio.

Capacity: 60-1804t/h Max Feeding Size: 100mm

Patented rotor.

Perfect interchange between ROR and ROA.

Rotor with thin oil lubrication …

VSI SERIES VERTICAL SHAFT IMPACT CRUSHER

VSI Series Vertical Impact Crushers with International-level and High-performance sand making equipment are developed and manufactured by Germany advanced technology which is brought in by our company.

Capacity: 30-600t/h Max Feeding Size: 80mm

Simple and reasonable structure, low cost.

High crushing ratio, energy saving.

Fine crush and grind …

Our Services

Pre-sales:

* Help customers to choose product.
* Freely send engineers to the working field to plan the installation site and design the best technical production process.
* Design the special product according to the contract.

After-sales:

*Send the engineers to guide the installation.
*Install and adjust the equipment for customers.
*Train the operator for customers.
*We also provide the technical service for our customers after the installation.
*Solution for you choose as well as we will give lifetime free technical support and services.

Technical Data of VC7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Throughput (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VC726L 1881-2499 35 60-102 90-176 110 3600*1969*2200 ≤7055
VC726M 70-126 108-211 132
VC726H 96-150 124-255 160
VC730L 1630-2166 40 109-153 145-260 180 4600*2150*2480 ≤10000
VC730M 135-200 175-340 220
VC730H 160-243 211-410 264
VC733L 1455-1934 55 165-248 215-415 264 5500*2563*3178 ≤14020
VC733M 192-286 285-532 320
VC733H 238-350 325-585 400
VC743L 1132-1504 60 230-346 309-577 400 5850*2740*3031 ≤21040
VC743M 246-373 335-630 440
VC743H 281-405 366-683 500
VC766L 1132-1504 60 362-545 486-909 2*315 5850*2740*3050 ≤21840
VC766M 397-602 540-1016 2*355
VC788L 517-597 65 460-692 618-1154 2*400 6000*3040*3456 ≤23220
VC788M 560-848 761-1432 2*500
VC799L 517-597 65 644-967 865-1615 2*560 6000*3122*3625 ≤24980
VC799M 704-1068 960-1804 2*630

Technical Data of VCU7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Throughput (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VCU726L 1881-2499 55 86-143 108-211 110 3600*1969*2200 ≤6950
VCU726M 98-176 124-253 132
VCU726H 132-210 143-300 160
VCU730L 1630-2166 65 150-212 162-310 180 4600*2150*2482 ≤9910
VCU730M 186-280 203-408 220
VCU730H 220-340 245-480 264
VCU733L 1455-1934 80 230-338 255-497 264 5500*2563*3178 ≤13820
VCU733M 268-398 296-562 320
VCU733H 327-485 373-696 400
VCU743L 1132-1504 100 305-467 362-678 400 5850*2740*3031 ≤21240

VC7 series sand maker machine.pdf
