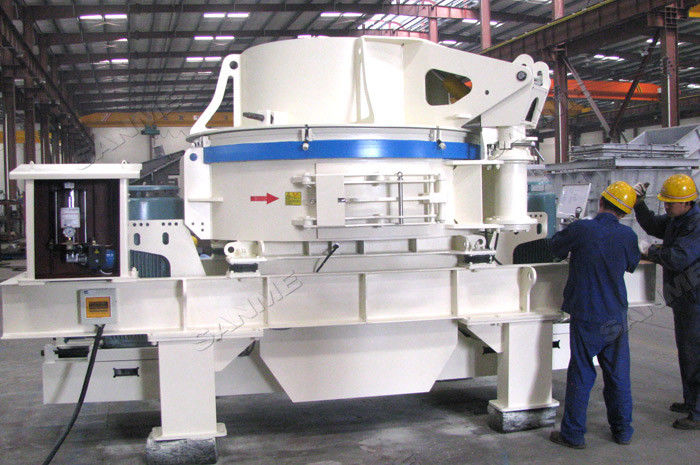

Stone AC Motor 65mm 600t/H Vsi Sand Maker Machine

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	VC726, VC730, VC733, VC743, VC766, VC788, VC799

Detail Information
Capacity(t/h):	60-1804	Max Feedding Size:	100mm
Max Feeding Size:	100mm	Product Name:	Good Quality Hard Stone Vsi Sand Maker Crusher Equipment
After Sale Service:	Life Long Operation Time	Motor Type:	AC Motor
High Light:	600t/H Sand Maker Machine,65mm Sand Maker Machine,Vsi Vertical Shaft Impact Crusher

Product Description

sand maker machine , Professional German Technology Solutions , The Leading Global Sand Maker Supplier.

SANME Vertical Shaft Impact Crusher with International-level and High-performance sand making equipment are developed and manufactured by Germany advanced technology which is brought in by our company. SANME produces two types of Vertical Shaft Impact Crusher: VSI Series Vertical Impact Crusher and VC7 Series Vertical Impact Crusher.

VC7 SERIES VERTICAL SHAFT IMPACT CRUSHER

VC7 Series Vertical shaft Impact Crusher, which are high-functioned equipment for making sand and shaping, are developed and produced by SANME. Thin oil lubrication excels traditional lubrication in many aspects: larger rotation rate, patent sealing structure, and high sand production ratio.

Capacity: 60-1804t/h Max Feeding Size: 100mm

Patented rotor.

Perfect interchange between ROR and ROA.

Rotor with thin oil lubrication …

VSI SERIES VERTICAL SHAFT IMPACT CRUSHER

VSI Series Vertical Impact Crushers with International-level and High-performance sand making equipment are developed and manufactured by Germany advanced technology which is brought in by our company.

Capacity: 30-600t/h Max Feeding Size: 80mm

Simple and reasonable structure, low cost.

High crushing ratio, energy saving.

Fine crush and grind …

Technical Data of VC7(H) Series Vertical Shaft Impact Crusher:

Model	Rotation Speed of Impeller (r/min)	Max Feed Size (mm)	Throughput (t/h) (Full feeding center / center plus waterfall feeding)		Motor Power (kw)	Overall Dimensions (mm)	Weight(motor not included) (kg)
VC726L	1881-2499	35	60-102	90-176	110	360019692200	≤7055
VC726M			70-126	108-211	132
VC726H			96-150	124-255	160
VC730L	1630-2166	40	109-153	145-260	180	460021502480	≤10000
VC730M			135-200	175-340	220
VC730H			160-243	211-410	264
VC733L	1455-1934	55	165-248	215-415	264	550025633178	≤14020
VC733M			192-286	285-532	320
VC733H			238-350	325-585	400
VC743L	1132-1504	60	230-346	309-577	400	585027403031	≤21040
VC743M			246-373	335-630	440
VC743H			281-405	366-683	500
VC766L	1132-1504	60	362-545	486-909	2*315	585027403050	≤21840
VC766M	1132-1504	60	397-602	540-1016	2*355	585027403050	≤21840
VC788L	517-597	65	460-692	618-1154	2*400	600030403456	≤23220
VC788M	517-597	65	560-848	761-1432	2*500	600030403456	≤23220
VC799L	517-597	65	644-967	865-1615	2*560	600031223625	≤24980
VC799M	517-597	65	704-1068	960-1804	2*630	600031223625	≤24980

Technical Data of VCU7(H) Series Vertical Shaft Impact Crusher:

Model	Rotation Speed of Impeller (r/min)	Max Feed Size (mm)	Throughput (t/h) (Full feeding center / center plus waterfall feeding)		Motor Power (kw)	Overall Dimensions (mm)	Weight(motor not included) (kg)
VCU726L	1881-2499	55	86-143	108-211	110	360019692200	≤6950
VCU726M			98-176	124-253	132
VCU726H			132-210	143-300	160
VCU730L	1630-2166	65	150-212	162-310	180	460021502482	≤9910
VCU730M			186-280	203-408	220
VCU730H			220-340	245-480	264
VCU733L	1455-1934	80	230-338	255-497	264	550025633178	≤13820
VCU733M			268-398	296-562	320
VCU733H			327-485	373-696	400
VCU743L	1132-1504	100	305-467	362-678	400	585027403031	≤21240
