40-1220 T/H Mining Crushing Machine , Hydraulic Cone Crusher , Stone Crushing Machine Energy Saving

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: SMS1000, SMS2000, SMS3000, SMS4000, SMS5000, SMS8000

Detail Information

Capacity(t/h): 40-1220 Max Feeding: 20-355mm
Application: Construction Works , Energy & Mining Motor Type: AC Motor
Dimension(L*W*H): According To Different Models Warranty: 1 YEAR
High Light:

mining jaw crusher,mining rock crusher

Product Description

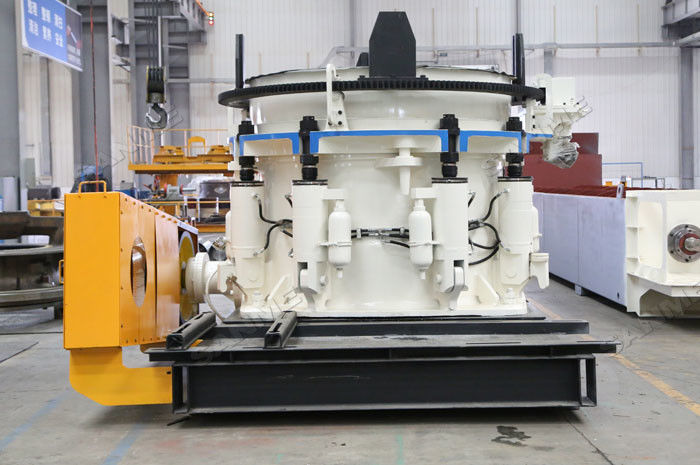

40-1220 T/H Mining Crushing Machine , Hydraulic Cone Crusher , Stone Crushing Machine Energy Saving



SMS Series Fully Hydraulic Cone Crushers adopts international advanced technologies and has high performance. It is suitable for hard and medium hard rocks and ores.



Features of SMS Series Fully Hydraulic Cone Crushers:

1. The new series cone crusher adopts the international advanced technology, and with superior performance.

2. The design of fixed shaft and the optimized crushing cavity improve the crushing capacity wholly.

3. The composition of product size is more stable, and the shape is better.

4. The full hydraulic standard configuration, simple operation, flexible adjustment.

5. The independent single- cylinder design makes the system performance stable.

6. The new integrated base simplify the installation steps.

7. Improve the shape structure, setting the function and aesthetics in one.





Working principle of SMS Series Fully Hydraulic Cone Crushers:



SMS series fully hydraulic cone crusher is consist of main frame, drive shaft, eccentric, socket liner, crushing body, adjusting device, adjusting sleeve, lubrication system and hydraulic system.

When the crusher working, the motor drives the eccentric rotating through the drive shaft and a pair of bevel gear, cone axis does rotary pendulum movement under the force of eccentric sleeve , which makes the mantle surface sometimes near the concave, sometimes far from the concave, so that the ore in the crushing cavity is continually squeezed and being broken.

The material enter into the crusher from the upper feed opening, by crushing can be discharged from the bottom discharge opening.



Technical Date of SMS Series Fully Hydraulic Cone Crushers:

Model
Max Feed Size (mm)
Discharge Range (mm)
Motor Power (kw)
Capacity (t/h) —— open circuit, closed discharge (mm)
Weight (t)
6
9
13
16
19
22
26
32
38
45
51
63
SMS1000EC 150 22~32 90           95 105 110
SMS1000C 107 13~26     65 78 85 95 105
SMS1000M 76 10~22   53 65 78 85 95
SMS1000F 45 9~19   53 65 78 85
SMS1000EF 20 6~16 40 53 65 78
SMS2000C 185 22~38 160           170 185 200 225       17.5
SMS2000M 135 16~32       118 140 170 185 200         17.5
SMS2000F 95 13~26     95 118 140 170 185           17.5
SMS2000DC 76 10~22 160   78 95 115 125 155             17.5
SMS2000DM 54 9~19   78 95 115 125               17.5
SMS2000DF 25 6~16 60 78 95 115                 17.5
SMS3000EC 235 26~51 160-220             245 270 320 375 400   25
SMS3000C 211 22~45           230 245 270 320 375     25
SMS3000M 150 16~38       155 175 230 245 270 320       25
SMS3000F 107 13~32     110 155 175 230 245 270         25
SMS3000DC 78 10~22 160-220   105 130 160 165 210             25
SMS3000DM 53 9~19   105 130 160 165               25
SMS3000DF 25 6~16 90 105 130 160                 25
SMS4000EC 299 32~51 200-315               365 420 480 520   33.5
SMS4000C 235 26~51             315 365 420 480 520   33.5
SMS4000M 199 22~45           266 315 365 420 480     33.5
SMS4000F 135 16~38       198 210 266 315 365 420       33.5
SMS4000DC 95 13~26 200-315     180 205 235 265 290           33.5
SMS4000DM 76 10~22   145 180 205 235 265             33.5
SMS4000DF 45 6~19 120 145 180 205 235               33.5
SMS5000EC 335 32~51 315-400               460 560 615 715   49
SMS5000C 275 26~51             390 460 560 615 715   49
SMS5000M 210 22~45           340 390 460 560 615     49
SMS5000F 150 16~38       285 305 340 390 460 560       49
SMS5000DC 102 13~26 315-400     230 280 340 375 410           49
SMS5000DM 76 10~22   175 230 280 340 375             49
SMS5000DF 45 6~19 145 175 230 280 340               49
SMS8000EC 355 32~63 600               720 800 900 1028 1220
SMS8000C 305 32~51               720 800 900 1028
SMS8000M 260 26~45             620 720 800 900
SMS8000F 215 22~38         480 520 620 720 800
SMS8000DC 155 13~26 600     380 455 515 535 585
SMS8000DM 92 10~22   310 380 455 515 535
SMS8000DF 45 6~19 240 310 380 455 515



40-1220 T/H Mining Crushing Machine , Hydraulic Cone Crusher , Stone Crushing Machine  Energy Saving 0
