Granite Limestone 480t/H Mobile Cone Crusher For Construction Waste factory

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: Mobile Crusher

Detail Information

Raw Materials: Granite, Limestone, Concrete, Lime, Plaster, Slaked Lime Capacity: 250-480t/h
Application: Widely Used In Construction Waste, Mine, Mining, Sand And Cement Companies Guarantee: 1 Year
Core Components: PLC, Gear, Motor, Engine, Bearing, Pump After Warranty Serv: Field Maintenance And Repair Service
High Light:

480t/H Mobile Cone Crusher,Granite Mobile Cone Crusher,Plaster Construction Waste Mobile Cone Crusher

Product Description


1. High efficiency of crusher host: super heavy rotor, high wear-resistant material and large crushing chamber make it have large feed size, stable product and high output;

2. The final product has good grain shape and large crushing ratio: it is suitable for all kinds of crushing requirements and has a wide range of uses;

3. Simple operation and convenient maintenance: the rear frame of crusher is opened by hydraulic pressure, which is convenient for maintenance; the side discharge belt is foldable;

4. Flexible configuration: iron remover, return system or plate feeding system can be selected;

5. It can realize fast transfer operation: it adopts intelligent wireless remote control device, which has good site mobility, and can adapt to various complex construction environments such as mountains and wetlands.

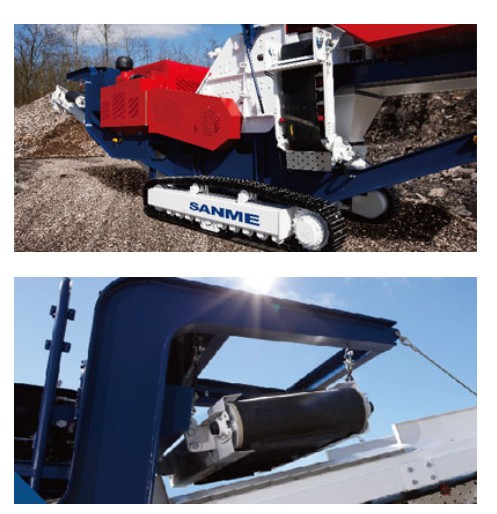

Granite Limestone 480t/H Mobile Cone Crusher For Construction Waste 0


Granite Limestone 480t/H Mobile Cone Crusher For Construction Waste 1


Technical Data of MP-PH Series Mobile Impact Crushing Plants:

Model MP-PH 10 MP-PH 14
Impact crusher AP-PH-A 1010 AP-PH-A 1414
Feed opening size(mm×mm) 810×1030 1025×1360
Max feed size(m3) 0.3 0.5
Max edge length in one direction(mm) 800 1000
Crushing capacity(t/h) up to 250 up to 480
Drive diesel-direct diesel-direct
Driving Unit
Engine CAT C9 CAT C18
Performance (kw) 242 470
Feed hopper
Hopper volume(m3) 4.8 8.5
Grizzly feeder with pre-screening(two-deck)
Drive hydraulic hydraulic
Main conveyor belt
Discharge height(mm) 3100 3500
Drive hydraulic hydraulic
Side conveyor belt (option)
Discharge Height(mm) 1900 3500
Drive hydraulic hydraulic
For transportation the head-piece can be folded
Crawler unit
Drive hydraulic hydraulic
Permanent magnetic separator
Magnetic separator option option
Dimensions and weight
Working dimensions
-length (mm) 14600 18000
-width (mm) 4500 6000
-height (mm) 4200 4800
Transport dimensions
– length (mm) 13300 17000
– width (mm) 3350 3730
– height (mm) 3776 4000
Approx weight (t) 43 70

Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
