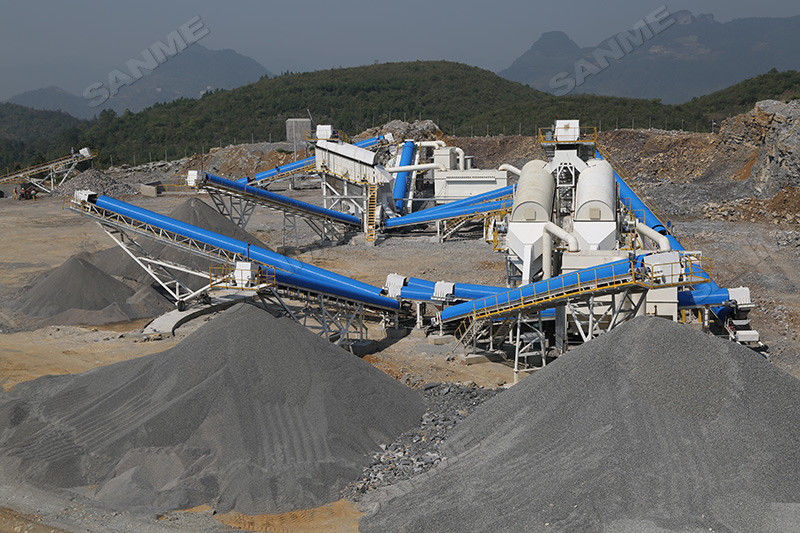

Complete Set Of Solutions For High-Quality Basalt Crushing And Screening Production Lines

Product Description

The new series cone crusher adopts the international advanced technology, and with superior performance.

The design of fixed shaft and the optimized crushing cavity improve the crushing capacity wholly.

The composition of product size is more stable, and the shape is better.

The full hydraulic standard configuration, simple operation, flexible adjustment.

The independent single- cylinder design makes the system performance stable.

The new integrated base simplify the installation steps.

Improve the shape structure, setting the function and aesthetics in one.

SMS series cone crusher adopt fixed main shaft design, and provide a unique combination of main shaft speed, throw and cavity, these changes have improved the capacity and product quality, and also have increased the fine crushing capability, thanks to the interparticle crushing action in the process of crushing, and the shape of aggregate has been improved greatly. SMS series cone crusher enable you to increase the productivity greatly, and decrease the operation cost, they are the satisfactory choices for mining processing or aggregate production.

CAPACITY

60-1220t/h

MAX FEEDING SIZE

20mm-335mm

RAW MATERIALS

Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, diabase, etc.

APPLICATION

Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

BASIC PROCESS OF GRANITE SAND MAKING PLANT

The granite sand making process is divided into four stages: coarse crushing, medium fine crushing, sand making and screening.

The first stage: coarse crushing

The granite stone blasted from the mountain is fed uniformly by the vibrating feeder through the silo and transported to the jaw crusher for coarse crushing.

The second stage: medium fine crushing

The coarsely crushed materials are screened by vibrating screen and then conveyed by belt conveyor to cone crusher for medium crushing. The crushed stones are conveyed to the vibrating screen through a belt conveyor to sieve out different specifications of stones. The stones that meet the requirements of the customer’s particle size are conveyed to the finished product pile through the belt conveyor. The cone crusher crushes again, forming a closed circuit cycle.

The third stage: sand making

The crushed material is larger than the size of the two-layer screen, and the stone is conveyed to the sand maker machine through the belt conveyor for fine crushing and shaping.

The fourth stage: screening

The finely crushed and reshaped materials are screened by vibrating screen for coarse sand, medium sand and fine sand.

Note: For the sand powder with strict requirements, a sand washing machine can be added behind the fine sand. The waste water discharged from the sand washing machine can be recovered by the fine sand recycling device. On the one hand, it can reduce environmental pollution, and on the other hand, it can increase sand production.

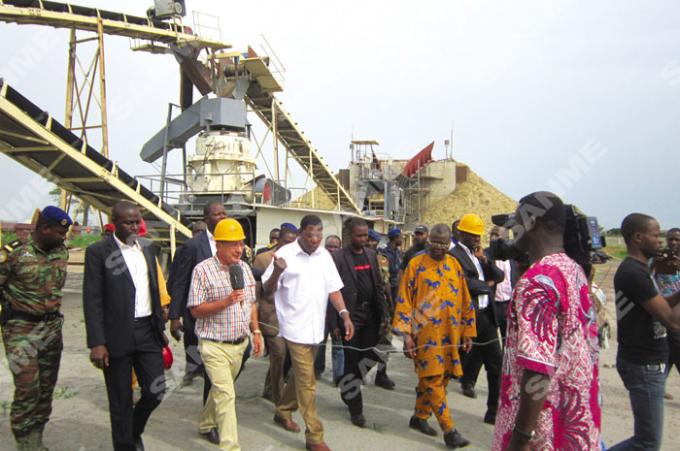

GRANITE AGGREGATES PROCESSING PROJECT CASE
