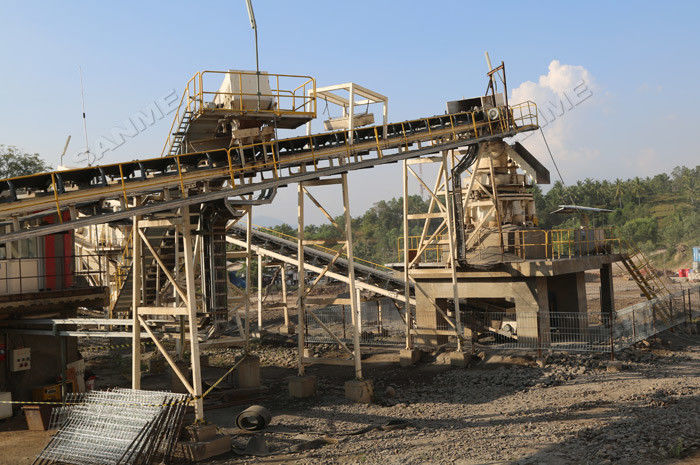

Urban Construction Wet Sand Granite Crusher Machine

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	JC jaw crusher, SMH cone crusher, VC sand maker

Detail Information
Raw Materials:	Hard Rock Such As Granite, Diorite, Basalt, Conglomerate, Sandstone, Limestone, Argillaceous Limestone, Dolomite, Gneiss, Quartzite, Marble, Slate, Etc Soft Rock Such As Tuff, Nagelfluh, Agrillaceous Shale, Argillaceous Conglomerate, Marl, Mudstone, Etc	Application:	It Is Suitable For Applications In Hydropower, Highway, Urban Construction; The Particle Size Can Be Combined And Graded According To The Different Requirements Of Clients.
Weight:	As Clients Demand	Warranty:	1 YEAR
Installation:	Under Technical Guidance	Key Selling Points:	Long Service Life
High Light:	Wet Sand Granite Crusher Machine,Urban Construction Granite Crusher Machine,Diorite Granite Crusher Machine

Product Description

INTRODUCTION OF WET SAND MAKING

Because we usually process stone materials, due to violent collisions and the stone material itself has a certain soil content, it will cause a certain amount of stone powder and mud powder in the manufactured sand. Mud powder has a serious impact on the quality of sand. Although the presence of stone powder can make up for the large gap caused by artificial sand in the concrete, but the configuration of concrete requires a large amount of water. Therefore, in order to solve the problem of powder content of manufactured sand, a sand washing machine is usually equipped in the manufactured sand production line, and then the mud powder in the sand is removed to achieve the standard of building sand. This is the wet sand production line.

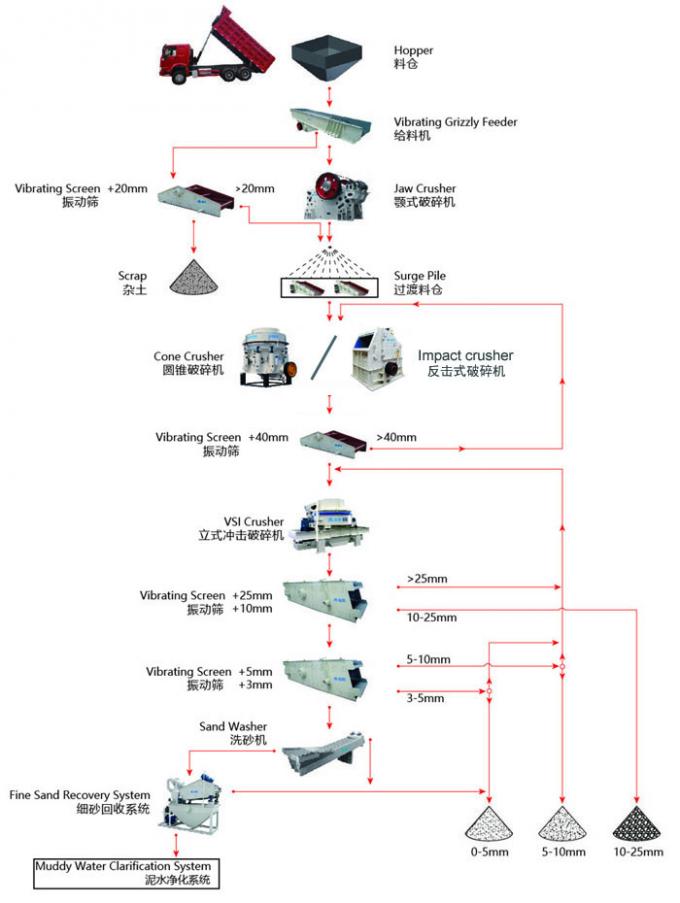

The wet sand making production line is composed of vibrating feeder, jaw crusher, impact crusher or cone crusher, sand maker, sand washer, fine sand collecting system, vibrating screen and belt conveyor. According to different process requirements, various types of equipment are combined to meet different process requirements of customers.

BASIC PROCESS INTRODUCTION OF WET SAND MAKING PLANT

In the process of SANME wet sand making, new sand making machine has replaced the rod mill with high running cost, which greatly improve the reliability of artificial sand production, and ensure the quality of product.

The process is specifically designed for the material less than 40mm ( material will be primarily and secondarily crushed by jaw crusher, cone crusher, impact crusher, etc to the size less than 40mm ), vertical shaft impact crusher ( sand making machine ) is used in the configuration of production line, this crusher is the new type sand maker of SANME, which has the features of high crushing efficiency ( with the function of fine crushing and coarse grinding ), simple structure, easy installation and maintenance, low operation cost and excellent particle size ( cubic shape, low content of needle-like particles ).

Aggregate with size of 0-40mm will be conveyed by electromagnetic feeder and belt conveyor to vertical shaft impact crusher for crushing, the crushed material will be conveyed to vibrating screen for screening, the material with size larger than 5mm will be conveyed back to sand maker for crushing to achieve a closed circuit.

The material with size less than 5mm will be conveyed to sand washer for cleaning, the cleaned material will be conveyed by belt conveyor to final product pile. In order to ensure the fineness module and sand grading, the sand washing water will be recycled by fine sand collection system to collect the fine sand with size less than 0.16mm.
