Hydraulic Gypsum Steel Slag Limestone Crusher Machine 350mm

Minimum Order Quantity:	Negotiate	Price	Negotiate
Packaging Details	Standard container, spare parts will be packed in wooden cases	Delivery Time	2 months
Payment Terms:	T/T, L/C	Supply Ability	50 sets per Month

Place of Origin:	Shanghai, China	Brand Name:	SANME
Certification:	ISO&CE	Model Number:	JC jaw crusher, SMS cone crusher, ZSW vibrating feeder

Detail Information
MATERIAL:	Steel Slag	APPLICATION:	After Being Processed, Steel Slag Can Be Used As Smelter Flux, Cement Raw Material, Construction Aggregate, Foundation Backfill, Railway Ballast, Road Pavement, Brick, Slag Fertilizer And Soil Amendment, Etc
After-sales Service:	Engineers Available To Service Machinery Overseas	Motor Type:	AC Motor
Weight:	As Clients Demand	Warranty:	1 YEAR
High Light:	350mm Steel Slag Limestone Crusher Machine,Gypsum Limestone Crusher Machine,350mm Aggregate Limestone Crusher Machine

Product Description

STEEL SLAG CRUSHING PROCESS

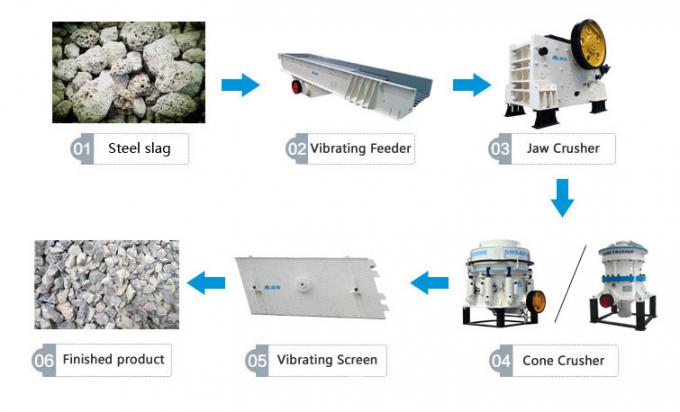

Raw material (less than 350mm ) will be conveyed to vibrating feeder, grate of vibrating feeder is set to 100mm, material with size less than 100mm(from vibrating feeder) will be conveyed to cone crusher, material with size larger than 100mm will be conveyed to jaw crusher for primary crushing.

The material from jaw crusher will be conveyed to cone crusher for secondary crushing, one magnetic separator is used in front of cone crusher for removing iron, and another magnetic separator is used behind cone crusher for removing steel chips from slag.

The material after passing through magnetic separator will be conveyed to vibrating screen for screening; material with size larger than 10mm will be conveyed back to cone crusher for being crushed once again, material with size less than 10mm will be discharged as final product.

RECYCLING BENEFITS OF STEEL SLAG

Steel slag is a kind of solid waste that is produced in the process of steel production, it mainly consists of blast furnace slag, steel slag, iron bearing dust (including iron oxide scale, dust, blast furnace dust, etc), coal dust, gypsum, rejected refractory, etc.

The pile of steel slag occupies a huge area of arable land, and causes environmental pollution; moreover, 7%-15% steel can be recycled from steel slag. After being processed, steel slag can be used as smelter flux, cement raw material, construction aggregate, foundation backfill, railway ballast, road pavement, brick, slag fertilizer and soil amendment, etc. Comprehensive utilization of steel slag can lead to enormous economic and social benefits.

FEATURES OF STEEL SLAG PROCESS

Steel slag crushing production line adopts jaw crusher for primary crushing, and uses hydraulic cone crusher for secondary and tertiary crushing, offering high crushing efficiency, low wear, energy saving and environmental protection, it has the features of high automation, low operation cost and reasonable allocation of equipment.

Technical description:

1. This process is designed according to the parameters provided by the customer. This flow chart is for reference only.

2. The actual construction should be adjusted according to the terrain.

3. The mud content of the material cannot exceed 10%, and the mud content will have an important impact on the output, equipment and process.

4. SANME can provide technological process plans and technical support according to the actual requirements of customers, and can also design non-standard supporting components according to the actual installation conditions of customers.
