Metallurgical 350t/H Stone Crushing Machine For Limestone

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: Portable Crusher

Detail Information

Raw Materials: River Pebbles, Rocks (limestone, Granite, Basalt, Diabase, Andesite, Etc.) Capacity: 80-350t/h
Application: Mining, Metallurgical, Chemical Industries, Foundry And Building Materials, Etc. Keyword: VSI Impact Crusher
Warranty: 1 YEAR Max Feeding Size: 65-80mm
High Light:

350t/H Stone Crushing Machine,Metallurgical Diabase Stone Crushing Machine,80mm Feeding Stone Crushing Machine

Product Description

PP SERIES PORTABLE VSI CRUSHER

PP Series Portable VSI Crusher (Portable vertical shaft Impact crusher) is equipped with high-performance VSI crusher and vehicle-mounted feeder and high strength screen of short length, light weight, high mobility, and strong adaptability.

THE DESIGN FEATURES OF PP SERIES PORTABLE CRUSHER

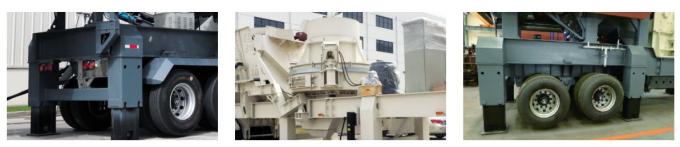

Mobile chassis conforms to the international standards. It has standard lighting and braking system. The chassis is heavy-duty design with big section steel.

The girder of mobile chassis is designed to be U style so that the overall height of the mobile crushing plant is reduced. So the loading cost is reduced greatly.

Adopt hydraulic leg(optional) for lift installation.Hopper adopt unitized design,reduce the transport height greatly.

Metallurgical 350t/H Stone Crushing Machine For Limestone 0

Technical Data of PP Series Portable VSI Crusher

Model PP5000VSI PP5000VSIS PP6000VSI PP6000VSIS PP7000VSI PP7000VSIS
Transport dimensions
Length(mm) 9800 11280 11500 15470 14000 15420
Width(mm) 2490 2780 2780 2780 3300 2780
Height(mm) 4200 4100 3850 4180 4160 4250
Weight(kg) 21600 28000 22100 32600 23200 33200
Axle weight(kg) 14600 19200 15100 22300 15100 21700
King pin weight(kg) 7000 8800 7000 10300 8100 11500
VSI Crusher
Model VSI-5000 VSI-5000 VSI-6000 VSI-6000 VSI-7000 VSI-7000
Feed opening(mm) 65(80) 65(80) 70(100) 70(100) 70(100) 70(100)
Throughput capacity range(t/h) 80-150 80-150 120-250 120-250 180-350 180-350
Screen
Model   3YK1548   3YK1860   3YK2160
BELT CONVEYOR
Model B650*6.5 B800*7.2 B800*6.7 B1000*8.6 B1000x7.2 B1000x7.2
Number of Axles 1 2 2 2 3 2

PP series portable crushing plants.pdf
