High Efficiency Portable Crushing Plants Convenient Maintenance Easy Operation

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: PP231JC,PP340JC,PP440JC,PP443JC,PP549JC

Detail Information

Raw Materials: River Pebbles, Rocks (limestone, Granite, Basalt, Diabase, Andesite, Etc. Capacity(t/h): 50-810
Max Feeding Size: 400-1200mm Application: Mining, Metallurgy, Construction, Highway, Railroad, And Water Conservancy, Etc.
Weight: 26.8-86T Setting Range(c.s.s): 40-250mm
Product Type: Jaw Crusher,Mobile Crusher,Portable Jaw Crusher Warranty: 1 YEAR
High Light:

portable crusher machine,portable cone crusher

Product Description

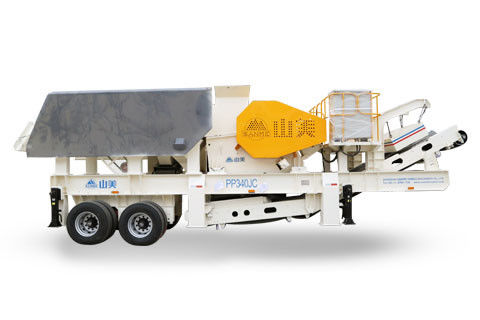

High Efficiency Portable Crushing Plants Convenient Maintenance Easy Operation

Features of PP Series Portable Jaw Crushers:

High-performance PE Series Jaw Crusher; Vehicle-mounted feeder, vibrating screen, belt conveyor; Traction steering shaft, convenient for highway transportation; Vehicle mounting support, fast and convenient for installation in the site; Integration of the mating motor and control box.

Portable Jaw crusheris equipped with a high performance jaw mobile crusher, and vehicle-mounted feeder and high-intensity vibrating screen of short length, light weight, high mobility, and strong adaptability, which is of flexible combination and reduces transportation costs – whether rough crushing, fine crushing or sand making operations, its design philosophy is to fully adapt to the various situations, eliminating barriers of mobile crushing site, environment, basic configuration of the crushing plant. We really provides simple, efficient, low-cost rock crushing equipment which is mainly used in metallurgy, chemical industry, building materials, hydroelectric project or other material which is often needed to be relocated ,especially suitable for highway, railway, hydropower engineering project. Customers can choose various configuration depending on the type of raw materials, scale and requirements of final products. Mobile jaw crusher plant greatly expands the concept of coarse crushing.

Working principle of PP Series Portable Jaw Crushers:

Through the feeder, materials evenly delivered to the crusher. After primary crushing of jaw crusher, a closed system is formed by vibrating screen. Final is discharged by belt conveyor, which is continuous crushing operations. Jaw mobile crusher can remove vibrating screen to realize primary crushing of raw material directly according to the actual production. It can be used with other broken equipment which is easy and flexible to operate.

Structural composition of PP Series Portable Jaw Crushers:

All parts of the jaw mobile crushing plant are fully vehicle-mounted including: solid frame, jaw crusher, feeder, vibrating screen, belt conveyor, motors and control boxes etc.

Applications of PP Series Portable Jaw Crushers:

1. It is widely used in mine, coal mine, waste and construction waste recycling, cubic meter of earth and stone project, urban infrastructure, road and building construction.

2. It can be used in topsoil and various other materials processing; separation viscous coagulation aggregate; construction and demolition industry; screening after broken; quarrying industry.

3. It can be adopted to crush cobble, rocks(limestone, granite, basalt, diabase, andesite etc.), ore tailings and sand making of aggregate chips.

Technical Data of PP Series Portable Jaw Crushers:

PP Series Portable Jaw Crushers PP231JC PP340JC PP440JC PP443JC PP549JC
Transport dimensions
Length(mm) 10650 11150 12910 14400 14400
Width(mm) 2550 2780 3120 2950 2950
Height(mm) 3900 4019 4438 4590 4590
Weight(kg) 26800 41600 60100 70400 86000
Axle weight(kg) 16800 26800 38800 46400 55000
King pin weight(kg) 10000 14800 21300 24000 31000
Jaw Crusher
Model JC231 JC340 JC440 JC443 JC549
Feed opening(mm) 510*810 600*1060 700*1060 800*1150 950×1250
Setting range(c.s.s)(mm) 40-150 60-175 70-200 90-125 110-250
Capacity(m3/h) 50-200 85-300 120-490 160-510 260-810
Feeder
Model GZT0932Y ZSW380*95 ZSW490*110 ZSW600*130 ZSW600*130
Feed hopper volume(m3) 6 7 8.4 10 10
Hopper width(mm) 3150 3000 3000 3000 3000
Belt Conveyor
Model B800*6.8 B1000*7.2 B1000*7.5 B1200*8.3 B1200*8.3
