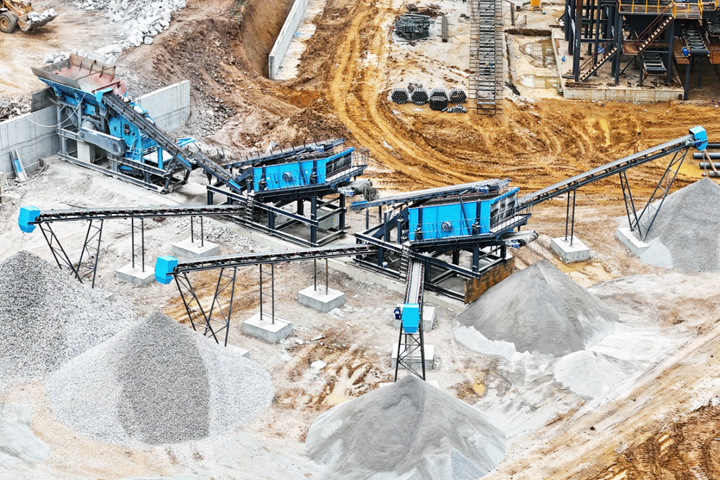

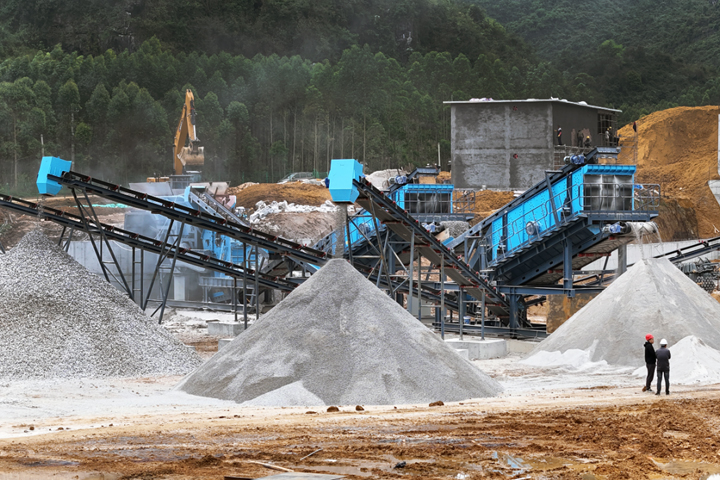

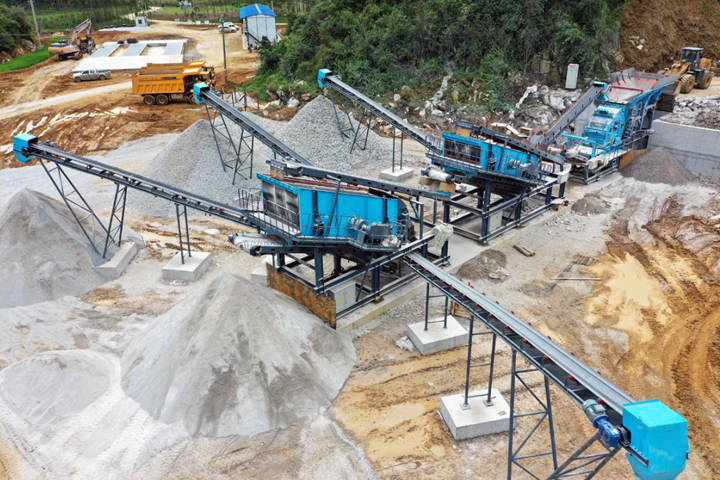

What is a Semi-Mobile Crushing Production Line?

A semi-mobile crushing production line is a multi-functional, integrated frame structure equipment combination that combines crushing and screening functions. It does not have its own mobility, but it has no concrete foundation connection to the ground, resulting in a short construction period, minimal civil engineering work, and rapid relocation and reassembly as needed. The following is a detailed introduction to the semi-mobile crushing production line:

1、Structural Features

Modular Design: The semi-mobile crushing production line adopts an advanced modular design concept, integrating crushing, screening, and other unit modules into a single frame structure, facilitating transportation, installation, and disassembly.

The frame structure is made of high-strength materials, ensuring the stability and reliability of the overall structure.

Weld-Free Frame: Compared to traditional welded frames, the semi-mobile crushing production line’s frame structure uses a weld-free design, reducing the impact of welding stress on structural strength and improving the equipment’s durability and service life.

Compact Layout: The equipment has a compact layout, occupying a small area, facilitating installation and arrangement in limited spaces.

The unit modules are fixed together using connectors or bolts, ensuring the stability and safety of the equipment during operation.

2、Working Principle

The working principle of a semi-mobile crushing production line is similar to that of a stationary crushing production line, but it is more flexible and adaptable. It typically includes core equipment such as a feeder, crusher, vibrating screen, and conveyor, as well as environmental protection facilities such as dust removal and noise reduction systems. The working process is as follows:

Feeding: Material is evenly fed into the crusher by the feeder for crushing.

Crushing: The crusher performs coarse, medium, or fine crushing of the material, selecting the appropriate crusher and crushing process based on the material characteristics and finished product requirements.

Screening: The crushed material is screened by a vibrating screen, separating the finished product that meets the specifications from the material that needs to be returned to the crusher for further crushing.

Conveying: The screened finished product is conveyed to the finished product area by a conveyor, while material that does not meet the requirements is returned to the crusher for further crushing.

Environmental Protection: Dust and noise generated during the crushing and screening processes are treated by dust removal and noise reduction equipment to ensure that emissions meet national environmental protection standards.

3、Advantages and Features

Short Construction Period: The semi-mobile crushing production line adopts a modular design, and each unit module can be prefabricated in advance, resulting in short on-site installation time and significantly shortening the construction period. Minimal Civil Engineering Work: Since the equipment itself lacks mobility and there is no concrete foundation connection, the amount of civil engineering work is significantly reduced, lowering construction costs.

Flexible Relocation: The semi-mobile crushing production line can be quickly relocated and reassembled according to construction needs, adapting to the requirements of different quarries or construction sites.

Easy Assembly: The entire machine adopts a modular design, making transportation and installation more convenient, reducing transportation costs and installation difficulty.

Excellent Finished Product Particle Shape: The crushed product is cubic in shape, with a high content of fine particles, meeting the specifications of construction sand and stone.

High Adaptability: The thin oil lubrication system adopts a redundant design with dual oil pumps and dual filters, offering high adaptability, ease of control, and extended component lifespan.

4、 Application Scenarios

The semi-mobile crushing production line is particularly suitable for multi-point quarries that require periodic relocation between different locations, as well as engineering projects with limited construction space or requiring rapid relocation. For example:

Construction Waste Treatment: In urban construction waste treatment plants, the semi-mobile crushing production line can be quickly relocated to different areas for crushing and screening construction waste.

Earthwork Engineering: In earthwork engineering, semi-mobile crushing production lines can be quickly repositioned according to construction progress and site changes to meet construction needs.

Road Construction: In road construction, semi-mobile crushing production lines can be used to crush and screen stones for road base and surface layers, improving construction efficiency and quality.
