What Is A Spring Cone Crusher


Spring cone crusher is an advanced crushing equipment with the characteristics of high power, high crushing ratio, and high productivity. The following is a detailed explanation about the spring cone crusher:


The spring cone crusher is the earliest type of cone crusher, which was developed based on the digestion and absorption of various types of cone crushers with international advanced levels in the 1980s from various countries.

Applicable scope:

The spring cone crusher is suitable for fine crushing and ultrafine crushing of hard rocks, ores, slag, refractory materials, etc.

It can be widely used in the metallurgical industry, construction industry, road construction industry, chemical industry, and phosphate industry, especially suitable for crushing hard and medium hard ores and rocks, such as iron ore, copper ore, limestone, quartz, granite, basalt, diabase, etc.

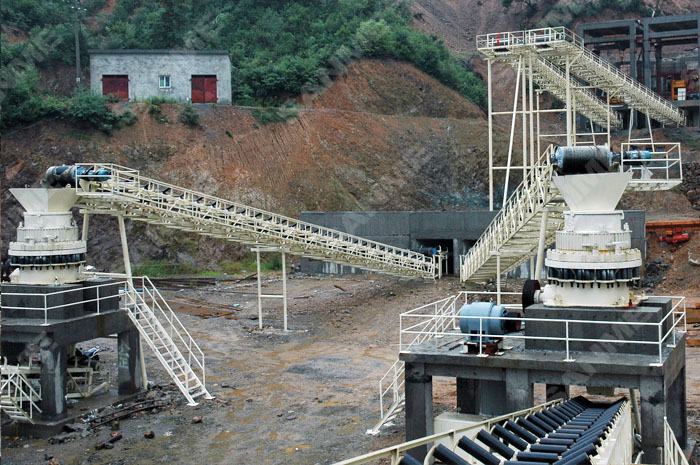

spring cone crusher

Working principle:

When the spring cone crusher is working, the motor drives the large bevel gear at the bottom of the eccentric sleeve through a hydraulic coupling and a small bevel gear, causing the eccentric sleeve to rotate, causing the cone to swing and crush the material.

The main shaft of the crusher is stationary, only the supporting spherical tile bears the crushing force.

Due to the stationary spindle of the crusher and the transmission of crushing force through the eccentric sleeve, this structure can withstand large crushing forces and is very suitable for fine and ultra-fine crushing.

Product features:

Increase eccentricity to improve processing capacity.

Accelerate speed, increase power, and improve crushing fineness.

Raise the center of the rotating cone pendulum and optimize the cavity design.

Thickening the lining plate extends the lifespan.

Hydraulic motor replaces hydraulic push rod device, precise and continuous adjustment of ore discharge port, and the fixed cone assembly is removed in 10 minutes.

High production and fine ore content.

The key components are made of high-strength materials, with appropriate weight increase for better reliability.

spring cone crusher


It mainly consists of a frame, transmission, eccentric shaft, bowl shaped bearings, crushing cone, adjustment device, adjustment sleeve, spring, and hydraulic station for adjusting the discharge port.

Job characteristics:

The moving cone rotates continuously, and the crushing and unloading processes of materials alternate and continue along the working surface, resulting in high productivity.

The material is sandwiched between two cones and is subjected to compression, bending, and shearing, making it easier to break and consuming less power.

The product has a relatively uniform material density and a cubic shape, and the wear on the working surface of the moving cone is also relatively uniform.

Security protection:

The casing consists of two parts, upper and lower, connected by bolts. Strong springs are installed on the bolts to prevent damage to the crusher when metal or other hard objects fall into the crushing chamber.

The spring cone crusher plays an important role in the mining and construction industries due to its unique structure and working principle.
