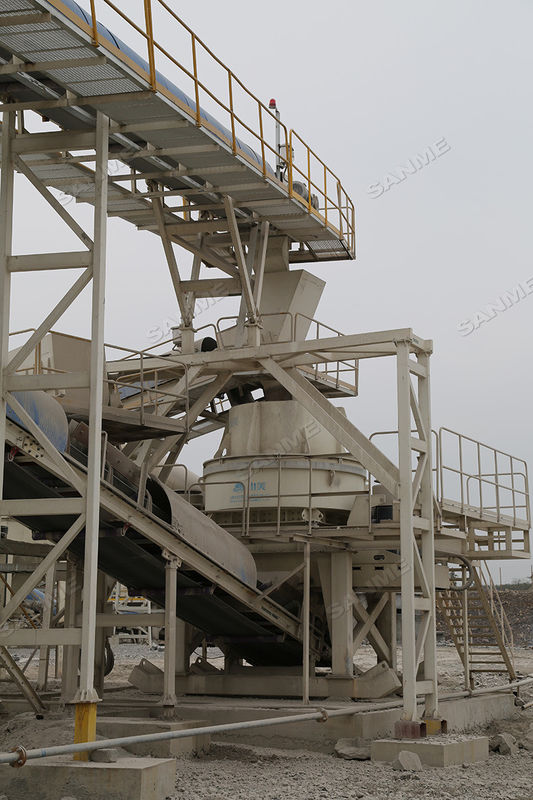

100mm Feeding Stone Crushing Machine River Pebbles Crusher

Minimum Order Quantity: Negotiate Price Negotiate
Packaging Details Standard container, spare parts will be packed in wooden cases Delivery Time 2 months
Payment Terms: T/T, L/C Supply Ability 50 sets per Month
Place of Origin: Shanghai, China Brand Name: SANME
Certification: ISO&CE Model Number: VC726,VC730,VC733,VC743,VC766,VC788,VC799

Detail Information

Application: Building Material Shops, Manufacturing Plant Max Feeding Size: 35-100mm
After-sales Service Provided: Video Technical Support, Online Support, Field Installation Warranty: 1 Year
The Machines Classification: Mining,cement,coal,metallurgy,construction,building Capacity: VC7(H) Series: 60-1804t/h; VCU7(H) Series:86-800t/h
High Light:

100mm Feeding Stone Crushing Machine,River Pebbles Crusher,800t/H Stone Crushing Machine

Product Description

THE CHAMBER CONFIGURATION OF VC7 SERIES VERTICAL SHAFT IMPACT CRUSHER

Rock on anvil with round rotor

Application range: all rock types and the most abrasive materials.

Features: enclosed rotor and square anvils combine the grinding action of the rotor with the high efficiency reduction of anvils.

Rock on rock with round rotor

Application range: all rock types and the most abrasive materials.

Features: enclosed rotor and rock box configuration causes rock on rock crushing which produces the best shaped material with the lowest wear cost.

Rock on anvil with open rotor

Application range: large feed, mild to medium-abrasive materials.

Features: open rotor and rock on anvil configuration offers high tonnage of production, high reduction ratios and large feed size with equal conditions.

WORKING PRINCIPLE OF VC7 SERIES ROTOR CENTRIFUGAL CRUSHER

The materials fall into impeller with high-speed rotation vertically. On the force of high-speed centrifugal, the materials strike to the other part of material in a high speed. After mutual impacting, the materials will strike and rub between the impeller and the casing and then be discharged straight from the lower portion to form a closed multiple cycles. Final product is controlled by screening equipment to meet the requirement.

PRODUCT DATA

Technical Data of VC7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Throughput (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VC726L 1881-2499 35 60-102 90-176 110 3600*1969*2200 ≤7055
VC726M 70-126 108-211 132
VC726H 96-150 124-255 160
VC730L 1630-2166 40 109-153 145-260 180 4600*2150*2480 ≤10000
VC730M 135-200 175-340 220
VC730H 160-243 211-410 264
VC733L 1455-1934 55 165-248 215-415 264 5500*2563*3178 ≤14020
VC733M 192-286 285-532 320
VC733H 238-350 325-585 400
VC743L 1132-1504 60 230-346 309-577 400 5850*2740*3031 ≤21040
VC743M 246-373 335-630 440
VC743H 281-405 366-683 500
VC766L 1132-1504 60 362-545 486-909 2*315 5850*2740*3050 ≤21840
VC766M 397-602 540-1016 2*355
VC788L 517-597 65 460-692 618-1154 2*400 6000*3040*3456 ≤23220
VC788M 560-848 761-1432 2*500
VC799L 517-597 65 644-967 865-1615 2*560 6000*3122*3625 ≤24980
VC799M 704-1068 960-1804 2*630

Technical Data of VCU7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Throughput (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VCU726L 1881-2499 55 86-143 108-211 110 3600*1969*2200 ≤6950
VCU726M 98-176 124-253 132
VCU726H 132-210 143-300 160
VCU730L 1630-2166 65 150-212 162-310 180 4600*2150*2482 ≤9910
VCU730M 186-280 203-408 220
VCU730H 220-340 245-480 264
VCU733L 1455-1934 80 230-338 255-497 264 5500*2563*3178 ≤13820
VCU733M 268-398 296-562 320
VCU733H 327-485 373-696 400
VCU743L 1132-1504 100 305-467 362-678 400 5850*2740*3031 ≤21240
VCU743M 335-506 379-746 440
VCU743H 375-540 439-800 500

VC7 series sand maker machine.pdf
